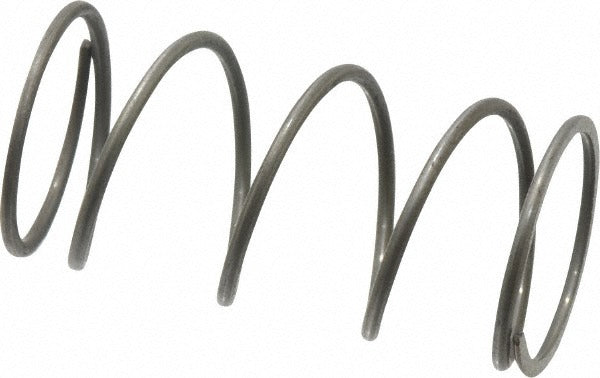

Value Collection 06812259 Compression Spring 0.6in Od

Product Description

The VALUE COLLECTION 06812259 is a compression spring designed for use in mechanical assemblies requiring controlled axial load resistance. With a 0.6 inch outside diameter and a 1.25 inch free length, this spring operates at a rate of 6.13 pounds per inch and supports a maximum work load of 5.52 pounds. The wire diameter measures 0.041 inches, and the solid height is 0.237 inches. This spring is suited for light-duty compression applications across industrial, HVAC, plumbing, and general mechanical service contexts. Technicians and assemblers working with valve components, brackets, actuators, or similar assemblies will find this spring straightforward to source and install.

This spring is a fit for applications where a compact, low-profile compression element is needed. The 0.625 inch hole diameter guidance makes it straightforward to seat within a mating bore. Common use scenarios include valve return mechanisms, equipment panel latches, actuator sub-assemblies, and light mechanical linkages found in commercial and residential service equipment. It is sold in a package quantity of 10 units, making it practical for technicians who need spares on hand or are servicing multiple units in a single job.

Key Features

• 0.6 inch outside diameter with a recommended mating hole diameter of 0.625 inches
• 1.25 inch free length and 0.237 inch solid height for compact installation clearance
• 6.13 lb/in spring rate provides consistent, predictable load response
• 5.52 pound maximum work load rated for light-duty compression service
• 0.041 inch wire diameter construction for fine-tolerance applications
• Sold in a package of 10 units to support multi-unit service calls

Compatibility

Designed as a general-purpose compression spring suitable for light mechanical assemblies, valve mechanisms, and equipment sub-components requiring a 0.6 inch OD spring with a 1.25 inch free length.

Installation Notes

Installation is typically performed by a qualified mechanical, HVAC, or plumbing technician. Before servicing any assembly containing compression springs, de-energize the equipment and relieve any stored mechanical or hydraulic pressure. Ensure the mating bore or guide rod dimensions are verified against the spring OD and wire diameter before seating. Compressed springs store energy and should be handled with appropriate hand protection.
