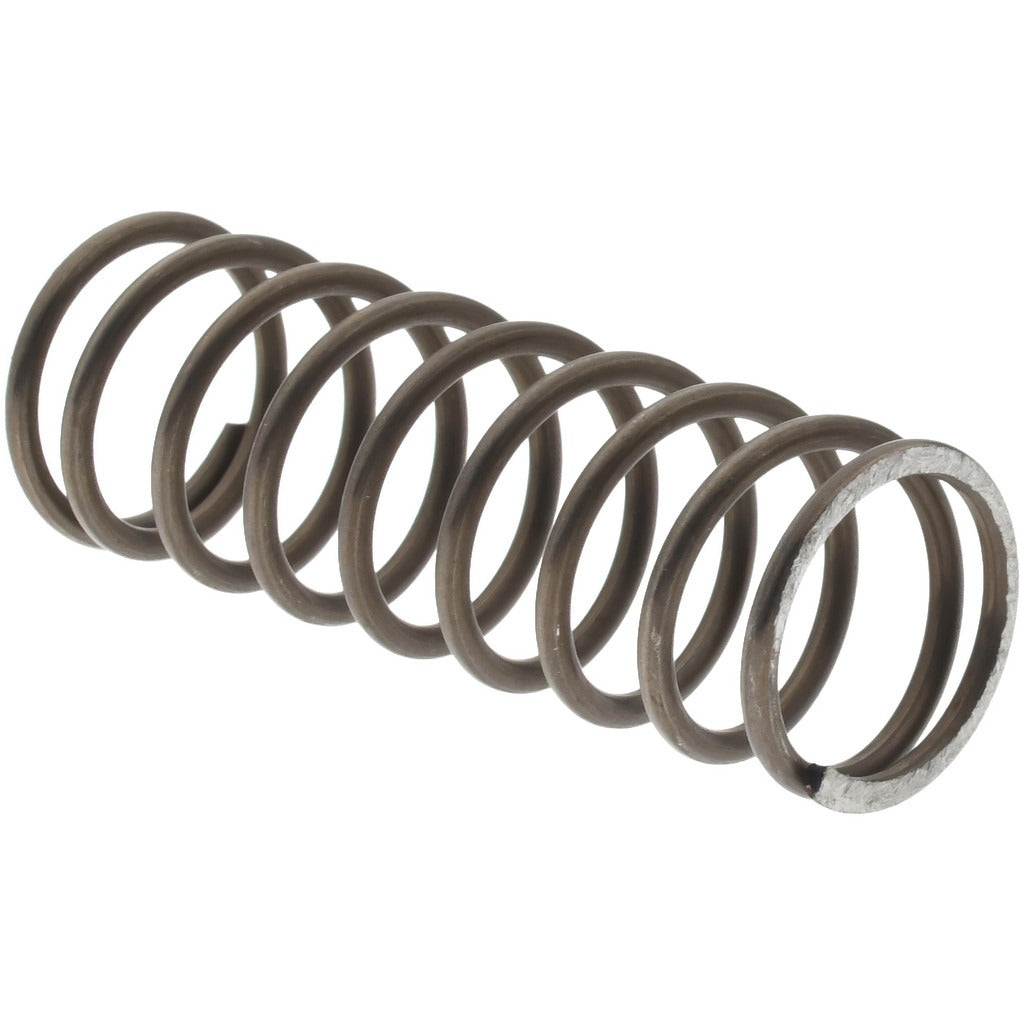

Value Collection 06811665 Compression Spring 0.42in Od

Product Description

The VALUE COLLECTION 06811665 is a small-diameter compression spring suited for light-duty mechanical assemblies where precise load control and consistent deflection are required. With an outside diameter of 0.42 inches and a free length of 1.25 inches, this spring delivers a spring rate of 10.1 pounds per inch and a maximum work load of 7.77 pounds. Wire diameter is 0.041 inches. These dimensions make it a practical choice for instrumentation, valve mechanisms, latching hardware, and similar close-tolerance applications. Sold in a package of 10 pieces, the 06811665 is suited for maintenance stock, production use, or bench repair work by mechanical technicians and industrial tradespeople.

This compression spring is used in applications requiring a compact, low-force return or seating element. Typical installation scenarios include spring-loaded valves, actuator mechanisms, tooling fixtures, and general industrial assemblies. The hole diameter accommodation of 0.438 inches and a solid height of 0.384 inches allow for predictable travel within constrained cavities. The package quantity of 10 makes it practical to stock for recurring maintenance tasks or multi-unit production runs.

Key Features

• Outside diameter of 0.42 inches fits standard 0.438-inch bore or hole installations
• Spring rate of 10.1 pounds per inch provides consistent, predictable deflection force
• Maximum work load of 7.77 pounds supports light-duty seating and return applications
• Wire diameter of 0.041 inches for fine-pitch, close-tolerance assemblies
• Solid height of 0.384 inches limits travel for controlled compression stroke
• Packaged in quantities of 10 for bench stock and production use

Compatibility

Designed as an OEM-style replacement or general-use compression spring for light-duty mechanical assemblies requiring a 0.42-inch outside diameter and 1.25-inch free length.

Installation Notes

Compression springs of this size are typically installed by mechanical technicians or maintenance personnel. Ensure the mating bore or guide pin dimensions are verified against the 0.42-inch OD and 0.384-inch solid height before installation. Relieve all system pressure and de-energize any associated actuators or mechanisms before servicing spring-loaded components. Avoid stretching or pre-compressing the spring beyond its maximum work load to maintain rated performance.
