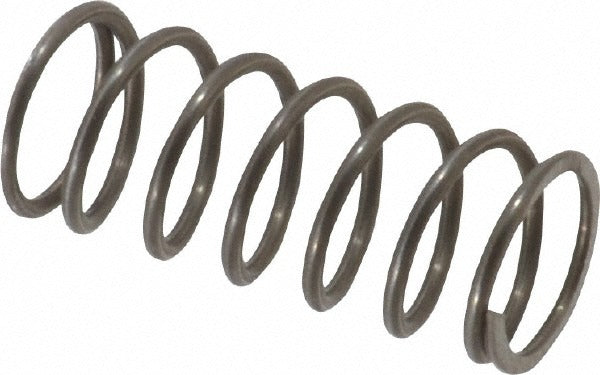

Value Collection 06811657 Compression Spring 0.42in Od

Product Description

The VALUE COLLECTION 06811657 is a small-diameter compression spring designed for light-duty mechanical applications requiring consistent return force within a compact envelope. With a 0.42 inch outside diameter and 1 inch free length, this spring operates at a rate of 12.86 pounds per inch and supports a maximum work load of 7.77 pounds. Wire diameter is 0.041 inches. It is suited for use in assemblies where space is limited and controlled deflection under load is required. Machinists, maintenance technicians, and mechanical assemblers install this type of spring in fixtures, tooling, valves, and general mechanical subassemblies.

This compression spring fits applications calling for a hole diameter of 0.438 inches and offers a solid height of 0.319 inches. It is appropriate for residential, commercial, and light industrial mechanical assemblies where repeatable spring force and compact dimensions are priorities. The spring ships in a package quantity of 10 units, making it practical for bench stock or low-volume production use.

Key Features

• 0.42 inch outside diameter fits standard 0.438 inch bore applications
• 1 inch free length in a compact form factor for tight assemblies
• 12.86 pounds per inch spring rate for predictable deflection control
• 7.77 pound maximum work load rating
• 0.041 inch wire diameter with 0.319 inch solid height
• Packaged in quantities of 10 for bench stock convenience

Compatibility

Designed as a standard-dimension compression spring suitable for mechanical assemblies requiring a 0.42 inch outside diameter and 1 inch free length within a 0.438 inch hole diameter.

Installation Notes

Installation is typically performed by machinists, maintenance technicians, or mechanical assemblers using standard hand tools. Ensure the mating bore and pilot dimensions are clean and free of debris before seating the spring. Do not compress the spring beyond its solid height of 0.319 inches, as coil bind will damage the spring and alter load characteristics. Verify alignment of the spring within its housing to prevent side loading and premature fatigue.
