Value Collection 06811640 Compression Spring 0.42 in Od

Product Description

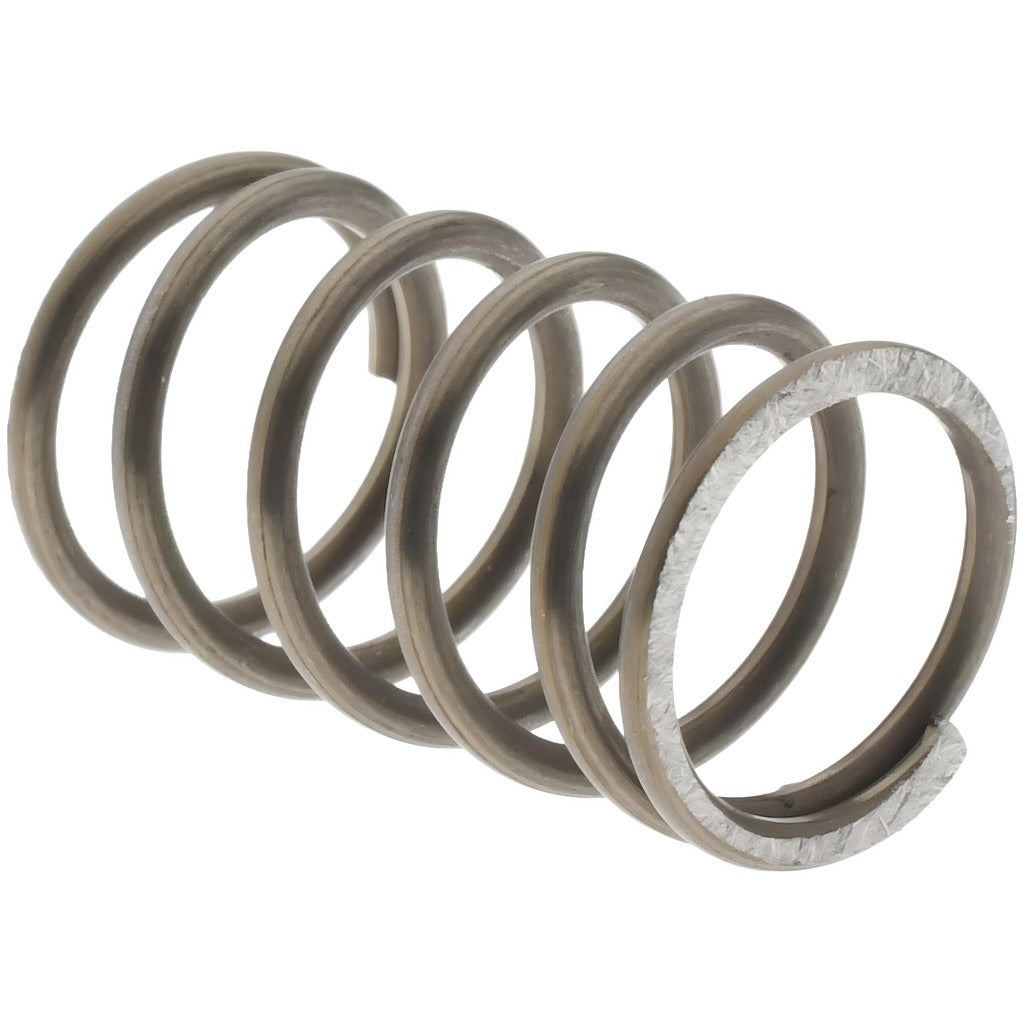

The VALUE COLLECTION 06811640 is a small-diameter compression spring suited for light-duty mechanical and industrial applications. With an outside diameter of 0.42 inches and a free length of 0.75 inches, this spring is designed for compact assemblies where precise load and deflection characteristics matter. The wire diameter measures 0.041 inches, producing a spring rate of 17.67 pounds per inch and a maximum work load of 7.77 pounds. Licensed trades and mechanical technicians working on valves, latches, actuators, or small equipment enclosures will find this spring well-suited for controlled return and load-bearing tasks in tight spaces.

This compression spring is appropriate for residential and light commercial mechanical applications, including HVAC actuator assemblies, plumbing valve components, electrical panel hardware, and general industrial equipment. It fits into bored holes up to 0.438 inches in diameter. The spring reaches a solid height of 0.255 inches when fully compressed. This SKU is sold in a package quantity of 10 springs, making it practical for shops and field technicians who need spares on hand for routine service or repair work.

Key Features

• Outside diameter of 0.42 inches fits bored holes up to 0.438 inches
• Free length of 0.75 inches with a solid height of 0.255 inches
• Spring rate of 17.67 pounds per inch for consistent, predictable deflection
• Maximum work load rated at 7.77 pounds
• Wire diameter of 0.041 inches for fine-pitch winding
• Sold in a pack of 10 for shop stock or multi-unit repairs

Compatibility

Designed as a general-purpose replacement compression spring for compact mechanical assemblies requiring a 0.42-inch outside diameter and 0.75-inch free length within the specified load and rate range.

Installation Notes

Installation is typically performed by mechanical technicians or trade professionals during assembly, valve service, or actuator repair. Depressurize or de-energize the host assembly fully before disassembling any spring-loaded component. Confirm that the seating bore and pocket dimensions match the spring outside diameter and solid height before installation. Do not compress the spring beyond its solid height during service.
