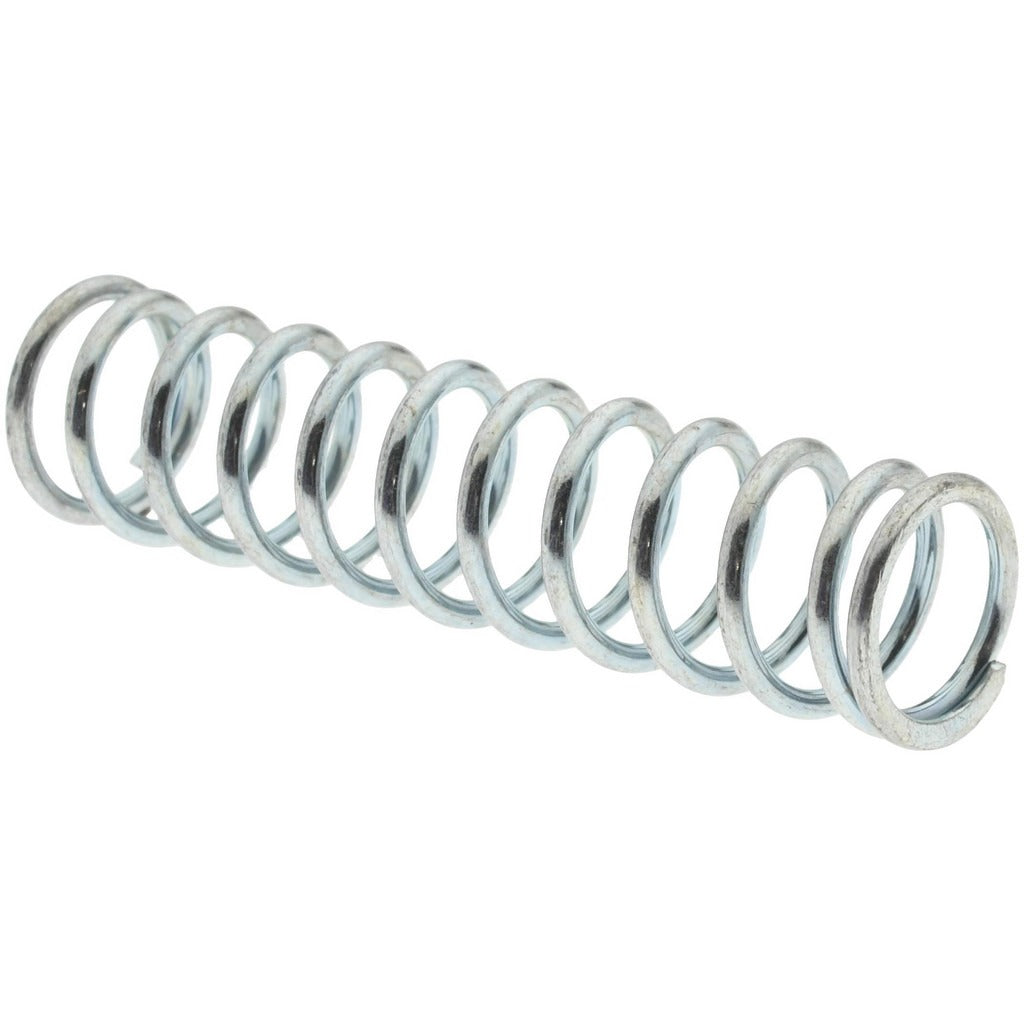

Value Collection 06811392 Compression Spring 0.36in Od

Product Description

The VALUE COLLECTION 06811392 is a compression spring suited for light-duty mechanical assemblies where controlled resistance and consistent return force are required. It measures 0.36 inches outside diameter with a free length of 1.5 inches and a wire diameter of 0.041 inches. The spring delivers a spring rate of 10.7 pounds per inch and handles a maximum work load of 8.99 pounds. Solid height comes in at 0.561 inches, which determines the travel limit under full compression. This type of spring is typically installed by maintenance technicians, machine builders, or mechanical assemblers working on valves, fixtures, tooling, and general industrial equipment.

This compression spring is appropriate for residential and commercial mechanical applications requiring a small-diameter, low-load spring. Common use cases include valve assemblies, push-button mechanisms, light tooling fixtures, and general-purpose machine components. Its compact outside diameter of 0.36 inches allows it to seat in bores up to 0.375 inches, making it a practical fit for close-tolerance housings. Packages ship in quantities of 10, which suits bench-stock replenishment or small-batch assembly work.

Key Features

• 0.36 inches outside diameter for use in bores sized to 0.375 inches
• 1.5 inches free length with a 0.561-inch solid height for defined compression travel
• 10.7 pounds per inch spring rate for predictable, linear resistance
• Maximum work load rated at 8.99 pounds
• 0.041-inch wire diameter provides consistent coil geometry
• Packaged in quantities of 10 for bench stock or assembly use

Compatibility

Designed as a general-purpose replacement or build-stock compression spring for light-duty mechanical assemblies requiring a 0.36-inch outside diameter and 1.5-inch free length.

Installation Notes

Compression springs should be installed by qualified mechanical technicians familiar with spring-loaded assemblies. Before servicing any spring-loaded mechanism, relieve all stored energy and follow applicable equipment lockout procedures. Verify that the housing bore diameter and recess depth are compatible with the spring dimensions before installation. Do not compress beyond the solid height, as doing so can cause permanent set and reduce spring performance.
