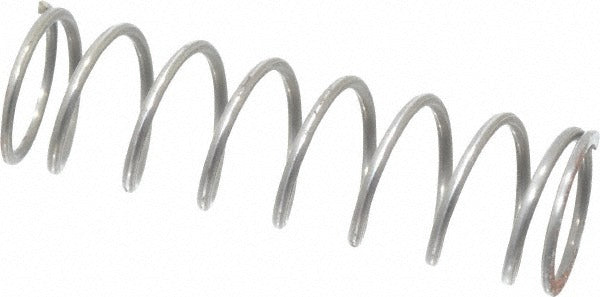

Value Collection 06811244 Compression Spring 0.36in Od

Product Description

The VALUE COLLECTION 06811244 is a small-diameter compression spring designed for light-duty mechanical assemblies where precise load and rate control are required. With a 0.36 inch outside diameter, a 1.25 inch free length, and a wire diameter of 0.032 inches, this spring delivers a rated spring rate of 5.61 pounds per inch and a maximum work load of 4.5 pounds. The solid height measures 0.307 inches, giving technicians a clear travel limit for application sizing. It is suited for use in instrument assemblies, valve mechanisms, light latching hardware, and other compact spring-return applications. Maintenance technicians and mechanical assemblers are the typical installers.

This compression spring fits installations where the mating hole diameter is approximately 0.375 inches. It is well suited for residential and light commercial mechanical assemblies, instrumentation enclosures, HVAC damper linkages, and small-component spring-return mechanisms. Sold in a package quantity of 10, it supports both single-unit repairs and small-batch production or maintenance builds. The compact form factor makes it a practical stock item for field service kits where light-force compression springs are routinely needed.

Key Features

• 0.36 inch outside diameter fits standard 0.375 inch hole diameter mating geometry
• 5.61 lb per inch spring rate provides consistent, predictable load response
• 4.5 pound maximum work load suits light-duty spring-return and latching applications
• 0.032 inch wire diameter with 0.307 inch solid height for compact travel range
• Package quantity of 10 supports field kits and small-batch maintenance needs

Compatibility

Designed as a general-purpose replacement or new-installation compression spring for light-duty mechanical assemblies requiring a 0.36 inch OD and 1.25 inch free length.

Installation Notes

Installation requires no special tools beyond standard hand tools and a caliper for confirming hole and rod clearances. Confirm the mating bore or rod diameter against the spring OD and wire size before installation to ensure proper seating and prevent coil binding. Verify that the application load does not exceed the 4.5 pound maximum work load rating. Replace springs in matched sets where multiple springs work in tandem to maintain balanced load distribution.
