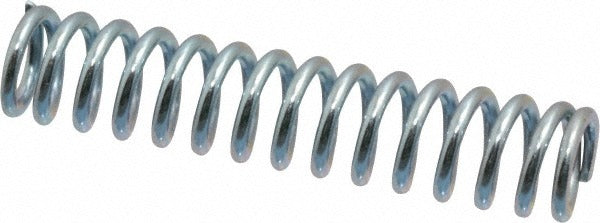

Value Collection 06811186 Compression Spring 0.3in Od

Product Description

The VALUE COLLECTION 06811186 is a small-diameter compression spring suited for light-duty mechanical assemblies, tooling fixtures, and general industrial or trade applications. It has an outside diameter of 0.3 inches, a free length of 1.5 inches, and a wire diameter of 0.047 inches. The spring delivers a spring rate of 27.03 lb/in and handles a maximum work load of 15.45 lb. It is sold in packages of 10 units. Technicians and assemblers working on equipment that requires consistent, repeatable spring force in confined spaces will find this part a straightforward fit for standard compression-spring positions.

This compression spring is intended for use in mechanical assemblies where a small outside diameter and moderate spring rate are required. Typical applications include light-duty clamping mechanisms, valve assemblies, tool holders, and general fastener or retention systems. The 0.3 inches OD is sized to fit within a 0.313 inch hole diameter, and the 0.847 inch solid height gives a clear reference for stack height planning during assembly design or maintenance work. It is appropriate for both industrial maintenance and original equipment assembly tasks.

Key Features

• Outside diameter of 0.3 inches fits a 0.313 inch bore or hole diameter
• Spring rate of 27.03 lb/in provides consistent, predictable deflection under load
• Maximum work load of 15.45 lb suits light-duty mechanical retention and actuation
• Wire diameter of 0.047 inches with a solid height of 0.847 inches for compact installations
• Free length of 1.5 inches allows measured preload flexibility during assembly
• Packaged in quantities of 10 for shop stock and maintenance inventory

Compatibility

Designed as a standard-profile compression spring for general mechanical assemblies requiring a 0.3 inch OD and 1.5 inch free length fitment.

Installation Notes

Compression springs of this size are typically installed by mechanical technicians or assemblers using standard hand tools and alignment fixtures. Before servicing any spring-loaded assembly, relieve all stored mechanical energy and follow the equipment manufacturer's lockout procedure. Confirm bore diameter clearance and solid height against the assembly drawing before installation. Avoid overcompressing the spring beyond its rated work load, as this can cause set loss and reduce service life.
