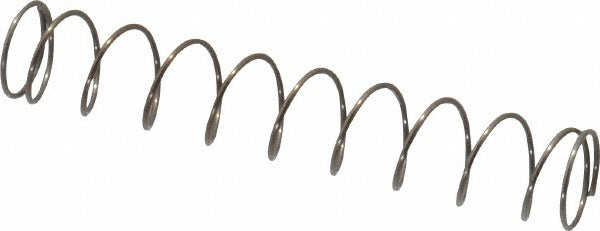

Value Collection 06810840 Compression Spring 0.3 in Od

Product Description

The VALUE COLLECTION 06810840 is a small-diameter compression spring designed for light-duty mechanical applications where precise load and rate control are required. The spring measures 0.3 inches in outside diameter and 1.75 inches in free length, with a wire diameter of 0.02 inches. It delivers a spring rate of 1.14 lb/in and a maximum work load of 1.43 pounds. The solid height is 0.222 inches, and the recommended hole diameter for installation is 0.313 inches. This part is suited for mechanical assemblies, tooling fixtures, valves, and similar applications where a small, consistent compression spring is needed.

This compression spring fits into applications requiring a compact, low-load return or retention force. Typical uses include light mechanical assemblies, instrument housings, valve components, and industrial tooling. The small wire diameter and outside diameter make it appropriate for confined spaces where standard springs would not fit. This spring ships in a package quantity of 10, making it practical for bench stock or multi-unit repair jobs.

Key Features

• 0.3 inch outside diameter for use in tight clearance applications
• 1.75 inch free length with a solid height of 0.222 inches
• Spring rate of 1.14 lb/in for consistent, predictable deflection
• Maximum work load of 1.43 pounds
• 0.02 inch wire diameter for fine, low-force compression duty
• Recommended installation hole diameter of 0.313 inches

Compatibility

Designed as a general-purpose compression spring for light mechanical assemblies requiring a 0.3 inch outside diameter and 1.75 inch free length.

Installation Notes

Installation is typically performed by mechanical technicians or assembly personnel. Ensure the mating bore or hole diameter matches the recommended 0.313 inch clearance before installing. Relieve any stored mechanical energy in the assembly before removing or installing compression springs. Do not compress the spring beyond its solid height of 0.222 inches during service or testing.
