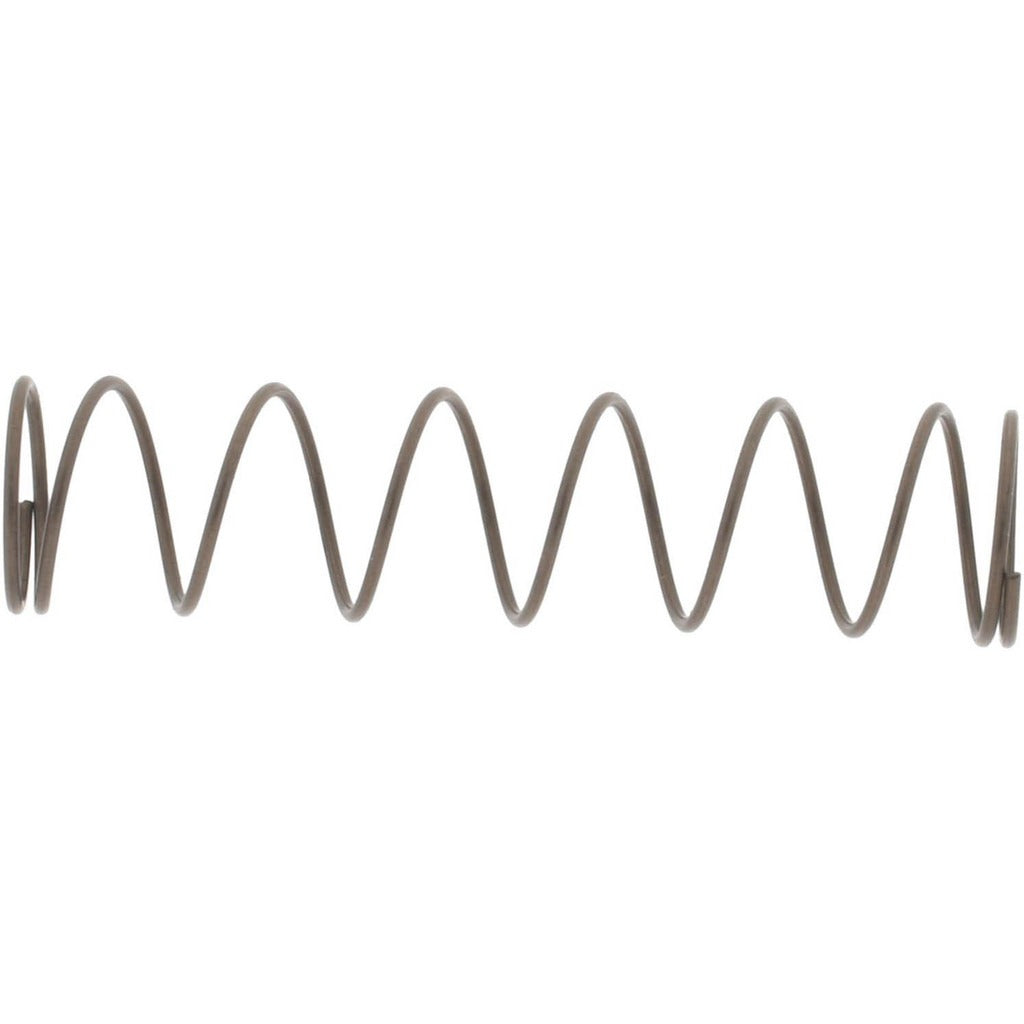

Value Collection 06810824 Compression Spring 0.3 in Od

Product Description

The VALUE COLLECTION 06810824 is a small-diameter compression spring suited for light-duty mechanical assemblies, tooling fixtures, and precision equipment applications. With an outside diameter of 0.3 inches and a free length of 1.25 inches, this spring delivers a spring rate of 1.61 pounds per inch and a maximum work load of 1.43 pounds. The wire diameter measures 0.02 inches, and the solid height is 0.169 inches. These tight tolerances make it appropriate for applications where space is limited and consistent force deflection matters. Mechanical technicians, machinists, and maintenance professionals working with small assemblies are the typical installers of this component.

This compression spring fits applications requiring a small-profile coil with light load characteristics. It is well suited for use in instrumentation, valves, latches, switches, light machinery, and precision jigs where a recommended hole diameter of 0.313 inches is available for guidance. The 10-piece package quantity supports bench stock and repair kit use in shop or field maintenance environments. Residential and commercial mechanical applications alike can make use of this spring where the specified load and rate values fall within design requirements.

Key Features

• Outside diameter of 0.3 inches fits into a 0.313-inch hole for guided installation
• Spring rate of 1.61 pounds per inch provides predictable, linear force deflection
• Maximum work load rated at 1.43 pounds for light-duty service
• Wire diameter of 0.02 inches with a compact solid height of 0.169 inches
• Free length of 1.25 inches in a small-footprint coil format
• Packaged in a 10-piece quantity to support bench stock and repair inventory

Compatibility

Designed as a general-purpose compression spring for light-load mechanical assemblies where an outside diameter of 0.3 inches, a free length of 1.25 inches, a spring rate of 1.61 pounds per inch, and a maximum load of 1.43 pounds fall within design specifications.

Installation Notes

Compression springs of this size are typically installed by machinists or mechanical maintenance technicians using standard hand tools. Verify that the mating bore or hole diameter is appropriate for guided spring installation before fitting. Relieve any stored mechanical energy in the assembly before removing or replacing a spring. Do not compress the spring beyond its solid height during installation, as doing so may permanently set the coil and alter the rated spring characteristics.
