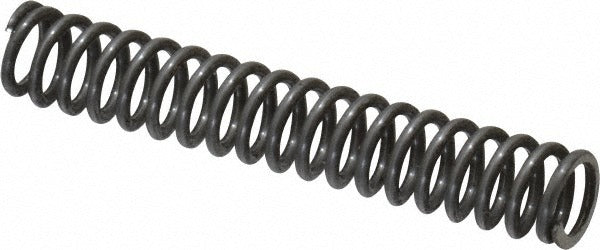

Value Collection 06810766 Compression Spring 0.24 in Od

Product Description

The VALUE COLLECTION 06810766 is a small-diameter compression spring suited for light-duty mechanical assemblies, tooling fixtures, and precision equipment. It measures 0.24 inches outside diameter with a free length of 1.5 inches and a wire diameter of 0.035 inches. The spring delivers a rated spring rate of 13.44 lb/in and supports a maximum work load of 8.43 pounds before reaching solid height. Fabricated for applications where consistent force output and reliable return action are required, this spring is a standard catalog item stocked for maintenance, repair, and OEM assembly use.

This compression spring is appropriate for use in residential and commercial mechanical applications including valve assemblies, actuators, latching mechanisms, and light industrial tooling. Its compact outside diameter and moderate spring rate make it well suited for installations where space is constrained and controlled resistance is needed. Technicians and assemblers working in HVAC equipment, plumbing valve bodies, or general mechanical assemblies will find this spring a practical replacement or new-build component.

Key Features

• Outside diameter of 0.24 inches fits into a hole diameter of 0.25 inches
• Free length of 1.5 inches with a solid height of 0.721 inches
• Spring rate of 13.44 lb/in for consistent, predictable force output
• Maximum work load rated at 8.43 pounds
• Wire diameter of 0.035 inches for light-duty compression service
• Sold in a package quantity of 10 for maintenance and repair stock

Compatibility

Designed as a standard-dimension compression spring suitable for use in light-duty mechanical assemblies, valve bodies, and precision fixtures requiring a 0.24-inch OD coil spring.

Installation Notes

Installation is performed by mechanical technicians or assemblers as part of valve, actuator, or fixture service. Relieve any system pressure and de-energize equipment before removing or replacing compression springs in pressurized or powered assemblies. Confirm the seating bore diameter matches the specified 0.25-inch hole diameter to prevent coil binding or lateral deflection during operation. Do not compress the spring beyond its rated maximum work load to avoid permanent deformation.
