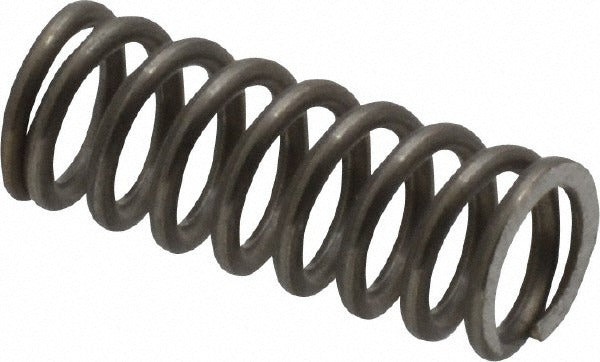

Value Collection 06810717 Compression Spring 0.24in Od 10-pack

Product Description

The VALUE COLLECTION 06810717 is a small-diameter compression spring designed for general mechanical and industrial applications. With an outside diameter of 0.24 inches and a free length of 0.625 inches, this spring delivers a spring rate of 34.64 pounds per inch and a maximum work load of 8.43 pounds. Wire diameter measures 0.035 inches, and solid height is 0.322 inches. The recommended hole diameter for installation is 0.25 inches. These springs are sold in a pack of 10 and are suited for use by maintenance technicians, machine builders, and trade professionals who need reliable small-format compression springs for light-duty mechanical assemblies.

This compression spring is appropriate for a wide range of residential and light commercial mechanical applications where a compact, consistent return force is required. Typical uses include control linkages, valve mechanisms, latching assemblies, and other small-component spring seats. The 0.24-inch outside diameter and 0.625-inch free length make this part well suited for tight clearance applications. Each pack contains 10 springs, making it practical for batch repairs or assembly work.

Key Features

• Outside diameter of 0.24 inches fits a 0.25-inch recommended hole diameter
• Spring rate of 34.64 pounds per inch provides consistent, predictable force
• Maximum work load rated at 8.43 pounds
• Wire diameter of 0.035 inches with a solid height of 0.322 inches
• Sold in a pack of 10 for multi-unit service or assembly jobs

Compatibility

Designed as a general-purpose compression spring suitable for light-duty mechanical assemblies requiring a 0.24-inch outside diameter and 0.625-inch free length specification.

Installation Notes

Install and remove compression springs only after the assembly or mechanism has been fully depressurized and de-energized. Verify that the mating bore or hole diameter matches the recommended 0.25-inch clearance before seating the spring. Use appropriate hand tools and eye protection when compressing or releasing springs during installation. Confirm spring seating and alignment before returning the assembly to service.
