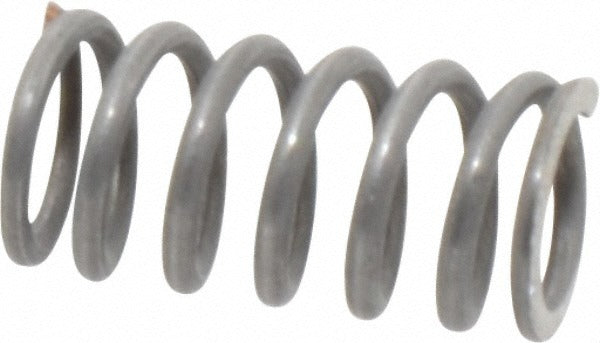

Value Collection 06810618 Compression Spring 0.24 in Od

Product Description

The VALUE COLLECTION 06810618 is a small-diameter compression spring suited for light-duty mechanical assemblies, fixtures, and precision components. It measures 0.24 inches in outside diameter with a free length of 0.5 inches and a wire diameter of 0.032 inches. The spring delivers a rate of 29.9 lb/in and handles a maximum work load of 6.59 pounds before reaching solid height. The solid height is 0.243 inches. Machinists, assemblers, and maintenance technicians working on tight-clearance mechanisms will find this spring a direct fit for applications requiring a small, consistent return force.

This compression spring is designed for use in compact mechanical assemblies where space is limited. Typical applications include instrument housings, valves, latches, jigs, and general industrial or commercial equipment. The 0.25-inch hole diameter recommendation makes it straightforward to seat the spring in standard bored pockets. The part is sold in a package quantity of 10, making it practical for bench stock or low-volume repair work requiring multiple units on hand.

Key Features

• 0.24 inches outside diameter for tight-clearance installation
• 0.5 inches free length with a solid height of 0.243 inches
• Spring rate of 29.9 lb/in for consistent, predictable return force
• Maximum work load of 6.59 pounds
• 0.032-inch wire diameter for fine, precise spring coil geometry
• Packaged in quantities of 10 for bench-stock convenience

Compatibility

Designed as a standard compression spring for compact mechanical assemblies requiring a 0.24-inch outside diameter and 0.5-inch free length; verify hole diameter clearance of 0.25 inches and solid height of 0.243 inches against application requirements before installation.

Installation Notes

Install by a qualified machinist or mechanical assembler familiar with spring-loaded component assemblies. Relieve all tension and de-energize any actuated mechanism before removing or replacing a compression spring in a live assembly. Use appropriate hand tools and eye protection when compressing or seating small-diameter springs. Confirm that the mating bore and rod dimensions are within tolerance for the specified hole diameter before finalizing the installation.
