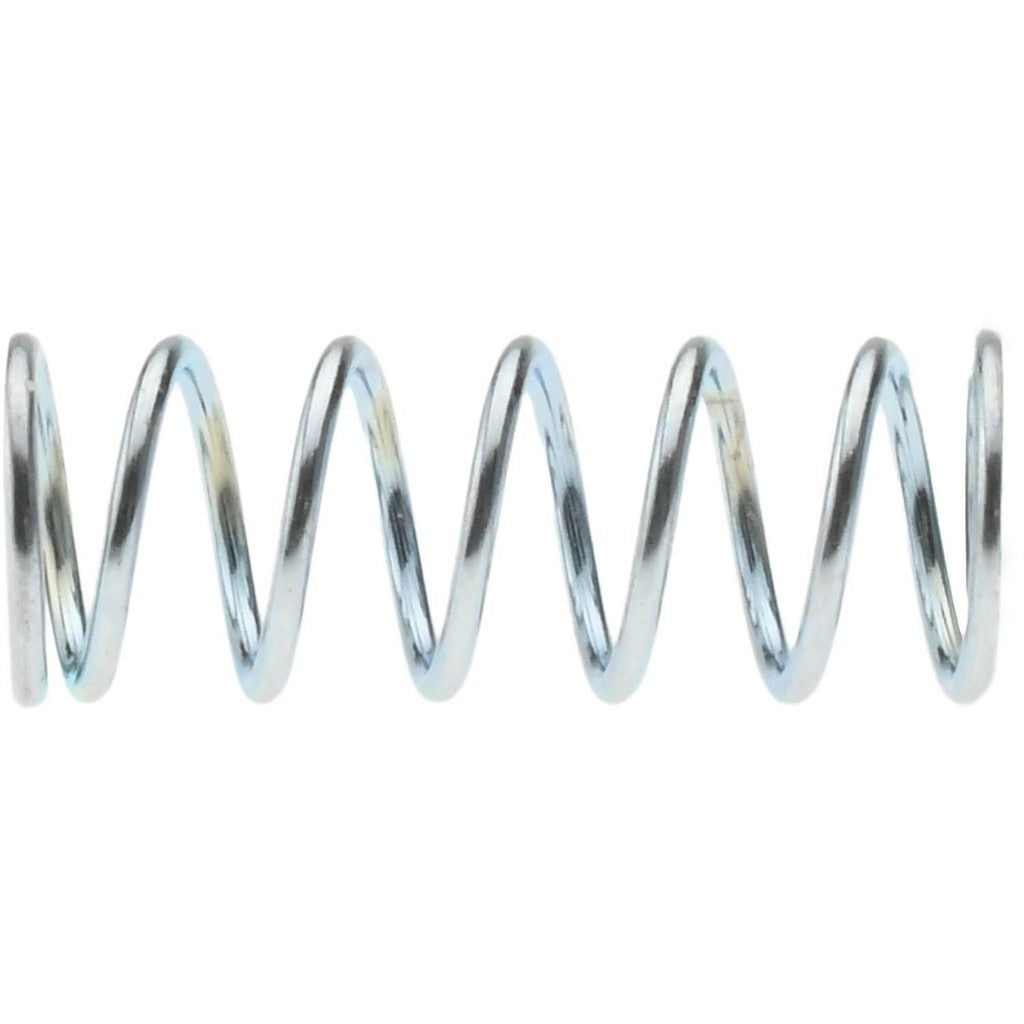

Value Collection 06810535 Compression Spring 0.24in Od 10pk

Product Description

The VALUE COLLECTION 06810535 is a small-diameter compression spring suited for light-duty mechanical assemblies, tooling fixtures, and precision equipment applications. With an outside diameter of 0.24 inches and a free length of 0.625 inches, this spring is engineered for compact spring cavities where controlled load and deflection are critical. The wire diameter measures 0.026 inches, producing a spring rate of 9.09 pounds per inch and a maximum work load of 3.32 pounds. Each package contains 10 springs, making it practical for small batch repairs or assembly line restocking. Installation and selection should account for the solid height of 0.205 inches and the recommended hole diameter of 0.25 inches.

This compression spring is used in a wide range of light mechanical, instrumentation, and industrial applications where a small-form-factor return or load element is required. Typical scenarios include switch mechanisms, valve assemblies, latching hardware, and precision tooling. The compact geometry suits applications in both manufacturing and maintenance environments where consistent spring force across a short travel distance is needed. Sold in packs of 10, this part is appropriate for technicians, machinists, and maintenance professionals managing inventory of small standard springs.

Key Features

• Outside diameter of 0.24 inches fits compact spring pockets
• Free length of 0.625 inches with a solid height of 0.205 inches for defined deflection range
• Spring rate of 9.09 pounds per inch for predictable load-deflection behavior
• Maximum work load rated at 3.32 pounds
• Wire diameter of 0.026 inches provides consistent coil geometry
• Packaged in quantities of 10 for efficient inventory management

Compatibility

Designed as a standard compression spring for use in light mechanical assemblies requiring a 0.24 inch outside diameter and 0.625 inch free length within a 0.25 inch hole diameter bore.

Installation Notes

Compression springs of this size are typically installed by machinists, maintenance technicians, or mechanical assemblers using standard hand tools. Before replacing a spring in any powered or pressurized assembly, ensure the system is fully de-energized or depressurized. Confirm the bore diameter, seat depth, and solid height clearances match the application before installation. Do not compress the spring beyond its solid height, as this will cause permanent set and degrade performance.
