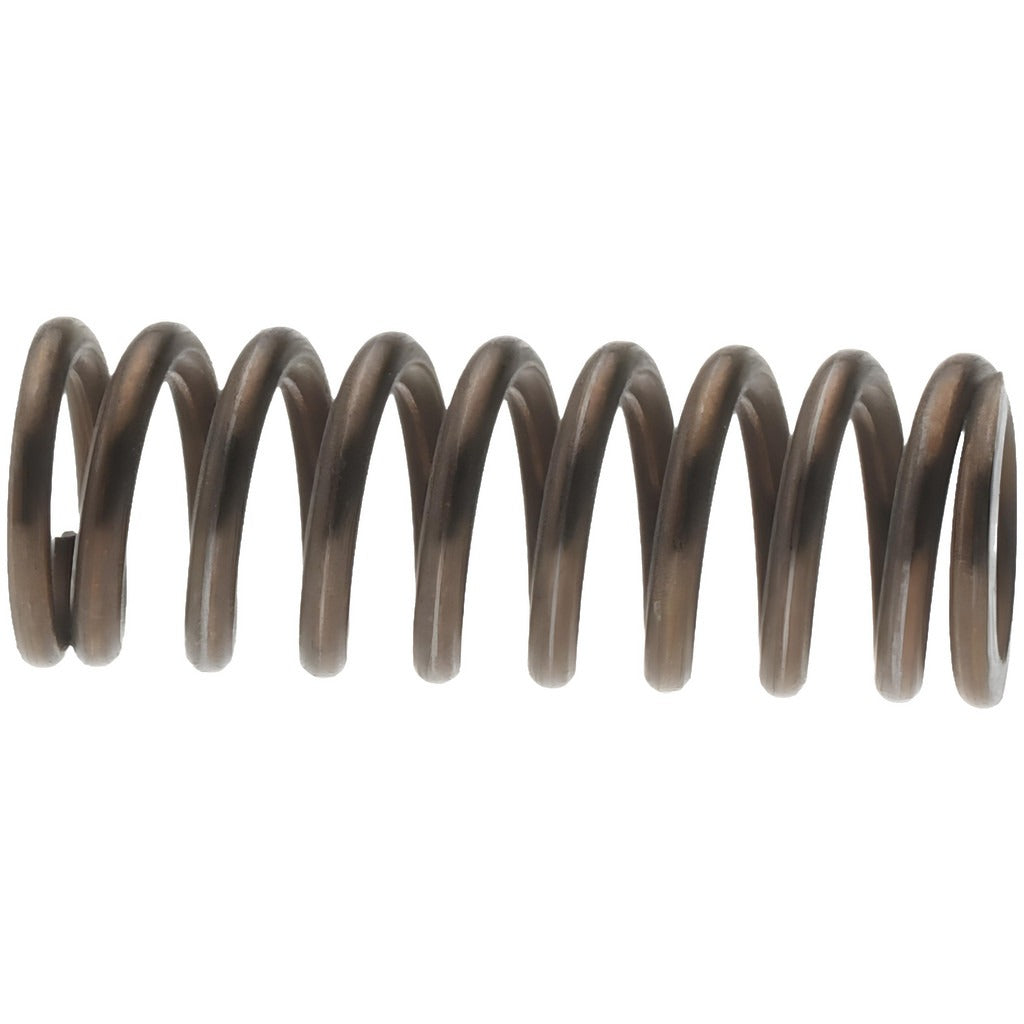

Value Collection 06810386 Compression Spring 0.18in Od

Product Description

The VALUE COLLECTION 06810386 is a small-diameter compression spring suited for light-duty mechanical assemblies where precise spring rate and consistent load behavior are required. Built to a 0.18-inch outside diameter and a 0.5-inch free length, it delivers a spring rate of 23.05 lb/in and a maximum working load of 4.33 pounds. Wire diameter is 0.026 inches. The solid height measures 0.238 inches, and the recommended hole diameter for housing is 0.188 inches. These springs are installed by mechanical assemblers, maintenance technicians, and industrial equipment service professionals working on small mechanisms, valves, latches, and similar hardware.

This compression spring is appropriate for use in compact mechanical assemblies across a range of industrial and light-commercial applications. Its small form factor suits tight-clearance installations such as instrument housings, pneumatic valves, relay mechanisms, and precision tooling fixtures. Sold in a pack of 10, this spring is practical for both single-repair jobs and low-volume production builds. The UNSPSC classification for this item is 31161904.

Key Features

• 0.18-inch outside diameter for use in tight-clearance housings and small bores
• 23.05 lb/in spring rate provides predictable, consistent load response
• 4.33 lb maximum working load suitable for light-duty mechanism applications
• 0.026-inch wire diameter with a solid height of 0.238 inches
• Recommended housing hole diameter of 0.188 inches for proper seating
• Sold in a quantity of 10 per package for stocking or repair use

Compatibility

Designed as a general-purpose compression spring for small mechanical assemblies requiring a 0.18-inch OD, 0.5-inch free length, and 23.05 lb/in spring rate; verify fitment against OEM specifications before installation.

Installation Notes

Installation is typically performed by mechanical technicians or equipment service professionals. Relieve all system pressure and de-energize any associated equipment before replacing compression springs in valves, actuators, or relay assemblies. Confirm the housing bore matches the 0.188-inch recommended hole diameter to prevent binding or cocking. Do not compress the spring beyond its solid height of 0.238 inches during assembly or testing.
