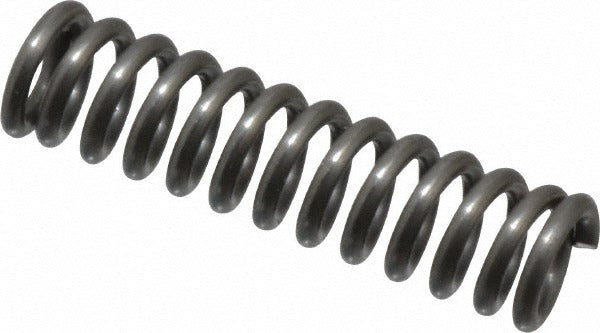

Value Collection 06810170 Compression Spring 0.12in Od

Product Description

The VALUE COLLECTION 06810170 is a small-diameter compression spring suited for light-duty mechanical assemblies requiring precise, repeatable force characteristics. Measuring 0.12 inches outside diameter and 0.5 inches free length, this spring is wound from wire with a 0.02-inch diameter. It delivers a spring rate of 20.9 lb/in and handles a maximum work load of 3.4 lb. The solid height is 0.28 inches, and the recommended hole diameter for housing is 0.125 inches. Installers and maintenance technicians working on small mechanical components, valves, or precision assemblies will find this spring useful where tight spatial constraints apply.

This compression spring is appropriate for use in light industrial, HVAC, plumbing, and general mechanical applications where a compact, low-load spring is required. Its small outside diameter makes it well suited for narrow bores and confined assemblies. It is sold in a package quantity of 10, making it practical for bench stock or small repair jobs. No specific OEM system compatibility is listed in the product data.

Key Features

• 0.12-inch outside diameter for tight bore and confined-space fitment
• 0.5-inch free length with a 0.28-inch solid height for compact stack-up
• 20.9 lb/in spring rate provides consistent, predictable force response
• 3.4 lb maximum work load rated for light-duty mechanical applications
• 0.02-inch wire diameter for fine, precise coil geometry
• Sold in packs of 10 for bench stock convenience

Compatibility

Designed as a general-purpose compression spring for light-duty mechanical assemblies where a 0.12-inch outside diameter and 0.5-inch free length meet design requirements.

Installation Notes

Installation is typically performed by a qualified mechanical technician or trade professional servicing small assemblies, valves, or actuators. Ensure the mating bore or housing does not exceed 0.125 inches in diameter for proper spring retention. Relieve any stored mechanical energy or system pressure before replacing springs in pressurized assemblies. Verify that the replacement spring rate and load ratings match the original equipment specification before installing.
