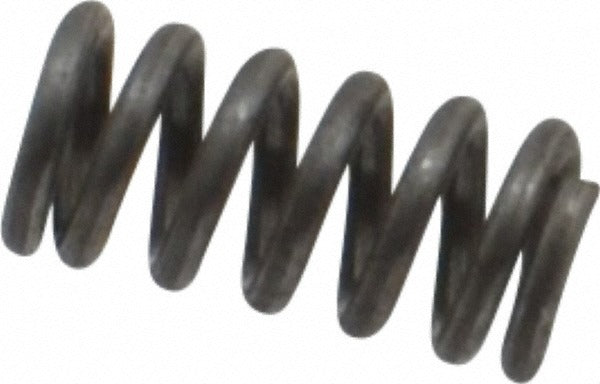

Value Collection 06810154 Compression Spring 0.12in Od

Product Description

The VALUE COLLECTION 06810154 is a small-diameter compression spring suited for precision mechanical assemblies, instrumentation, and light-duty industrial applications. With an outside diameter of 0.12 inches and a free length of 0.25 inches, this spring operates in tight-clearance environments where consistent force and compact geometry are essential. It delivers a spring rate of 48.42 pounds per inch and supports a maximum work load of 3.4 pounds. The wire diameter measures 0.02 inches, and the solid height is 0.155 inches. Licensed technicians, mechanical assemblers, and maintenance professionals working with small mechanisms or control components will find this part a direct fit for precision spring applications.

This compression spring is appropriate for use in light industrial equipment, control devices, valves, and precision mechanical assemblies where a small-envelope, high-rate spring is required. The 0.125-inch hole diameter specification makes it easy to seat the spring on a post or inside a bore for guided operation. It is sold in a package of 10 springs, making it practical for bench stock, service kits, and repetitive replacement work across multiple units or assemblies.

Key Features

• Outside diameter of 0.12 inches fits tight-clearance bores and guided spring posts
• Spring rate of 48.42 pounds per inch provides firm, consistent force in a compact form factor
• Maximum work load of 3.4 pounds suitable for light-duty precision mechanisms
• Wire diameter of 0.02 inches and solid height of 0.155 inches allow for short-travel, high-cycle applications
• Packaged in quantities of 10 for bench stock and service kit use

Compatibility

Designed as a standard compression spring for use in precision mechanical assemblies, instrumentation, small valves, and control devices requiring a 0.12-inch OD spring with a 0.25-inch free length.

Installation Notes

Installation is typically performed by mechanical assemblers or maintenance technicians working on light industrial or control equipment. Always de-energize or depressurize the assembly before replacing internal spring components. Verify seating depth, post diameter, and bore clearance against the 0.125-inch hole diameter and 0.12-inch outside diameter before installation. Avoid overcompressing beyond the solid height of 0.155 inches to prevent permanent set or damage to the spring.
