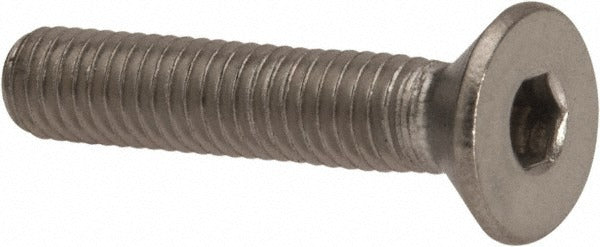

Value Collection 063059PS Flat Socket Cap Screw 10-32 X 1 in

Product Description

The VALUE COLLECTION 063059PS is a flat socket cap screw designed for secure, flush-mount fastening in close-tolerance assemblies. Threaded 10-32 UNF with an overall length of 1 inch, this screw seats at an 82-degree flat angle and is driven by a 5/32-inch hex socket. The body is machined from 316 stainless steel, which provides strong resistance to corrosion and pitting in wet, marine, and chemically aggressive environments. Machinists, millwrights, and maintenance technicians install this fastener wherever a countersunk, low-profile head is required and corrosion resistance is a priority.

This fastener is well-suited for light mechanical assemblies, instrumentation panels, electrical enclosures, pump housings, and marine or food-processing equipment where 316 stainless steel is specified. The UNF thread pitch gives a tighter thread engagement than coarse-thread alternatives, making it a common choice in metal-to-metal applications where vibration resistance and precise clamping are required. Sold individually, with a minimum order of 10 pieces.

Key Features

• 316 stainless steel construction for superior corrosion resistance in harsh and marine environments
• 82-degree flat head seats flush with the mating surface for a low-profile, snag-free finish
• 5/32-inch hex socket drive for positive torque engagement with standard Allen keys
• 10-32 UNF thread standard provides fine-pitch engagement for vibration-resistant clamping
• 1-inch overall length suits a wide range of light-to-medium fastening applications

Compatibility

Designed as an OEM-style replacement or standard fastener for any application specifying a 10-32 UNF flat socket cap screw in 316 stainless steel with an 82-degree countersink angle.

Installation Notes

Installation is performed with a 5/32-inch hex key or Allen driver; ensure the countersink angle in the mating material matches 82 degrees before installation. De-energize and lock out any equipment before fastening components to live assemblies. Apply an anti-seize compound compatible with stainless steel if the joint may require future disassembly, as 316 stainless fasteners are susceptible to galling under high torque. Follow applicable mechanical codes and equipment manufacturer specifications for fastener torque requirements.
