Value Collection 063039PS Flat Socket Cap Screw 10-24

Product Description

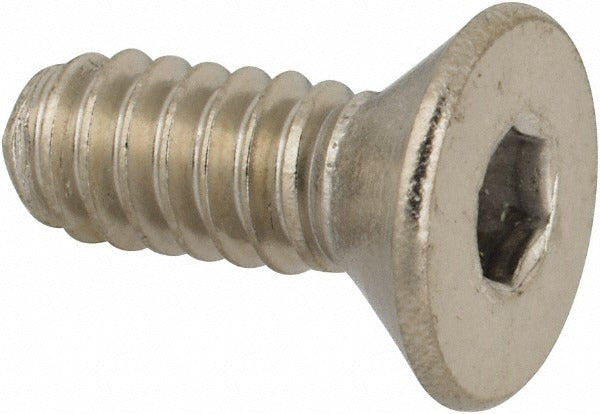

The VALUE COLLECTION 063039PS is a 10-24 x 1/2 inch flat socket cap screw machined from 316 stainless steel. It features an 82-degree flat head with a 5/32 inch hex socket drive, conforming to Unified National Coarse (UNC) thread standards. The 316 stainless steel construction provides strong corrosion resistance in wet, chemical, and marine environments. This fastener is installed by machinists, millwrights, pipefitters, and maintenance technicians wherever a flush or countersunk fastener is required. Overall length is measured from the bearing face to the tip.

This flat socket cap screw is suited for applications where the fastener head must sit flush with or below the surface of the mating material. Common installation scenarios include equipment panels, machine guards, fluid-handling components, and structural assemblies exposed to moisture or corrosive agents. The 316 alloy grade is the preferred choice over 304 stainless in chloride-rich or saltwater service environments. Sold in multiples of 10.

Key Features

• 82-degree flat head seats flush in standard countersunk holes
• 5/32 inch hex socket drive for use with standard Allen keys or hex bit drivers
• 316 stainless steel construction for superior corrosion resistance in harsh or wet environments
• 10-24 UNC thread for broad compatibility with standard inch-system tapped holes
• Overall length measured at 1/2 inch for compact, low-profile installations

Compatibility

Designed as a standard inch-series UNC flat socket cap screw for use in any application requiring a 10-24 threaded, countersunk fastener in 316 stainless steel.

Installation Notes

Installation requires a 5/32 inch hex key or Allen driver. Ensure the mating hole is properly countersunk to 82 degrees before installation. Apply appropriate thread lubricant or anti-seize compound when fastening into stainless-to-stainless joints to reduce the risk of galling. Follow applicable mechanical or structural codes for torque and fastener specification requirements.
