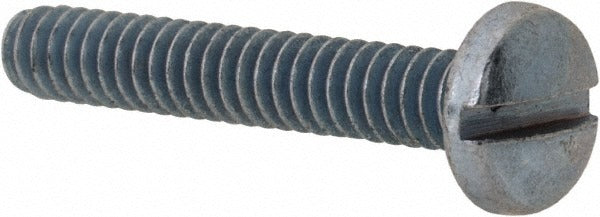

Value Collection 0614MSB 6-32 X 7/8 in Binding Head Screw

Product Description

The VALUE COLLECTION 0614MSB is a 6-32 x 7/8 inch binding head machine screw designed for general industrial and mechanical assembly applications. The binding head profile sits low and wide, making it well suited for clamping wiring harnesses, terminal connections, and light panel assemblies where a broad bearing surface is needed. The slotted drive accepts a standard flat-blade screwdriver. The screw is manufactured from steel with a zinc-plated finish to provide basic corrosion resistance in dry indoor environments. It conforms to ASME B18.6.3 and SAE J82 standards for dimensional and material consistency.

This fastener is commonly used in electrical panels, control enclosures, switchgear, HVAC equipment housings, and light mechanical assemblies where a 6-32 threaded hole is specified. The binding head style is a standard choice for wire lug and terminal block installations, where the wide underhead bearing surface distributes clamping load evenly. This screw is sold individually but requires a minimum order quantity of 100 pieces, making it suitable for production, service stock, or panel-build operations.

Key Features

• 6-32 thread size, 7/8 inch length measured under the head
• Binding head profile provides a wide bearing surface for terminal and wiring applications
• Slotted drive compatible with standard flat-blade screwdrivers
• Steel construction with zinc-plated finish for corrosion resistance in dry environments
• Meets ASME B18.6.3 and SAE J82 dimensional and material standards
• Without washer — no integrated washer face

Compatibility

Designed as an OEM-style replacement or service fastener for any application specifying a 6-32 binding head slotted machine screw per ASME B18.6.3.

Installation Notes

Installation is performed with a flat-blade screwdriver sized to match the slotted drive. De-energize any electrical panel or control enclosure before installing or removing fasteners near live components, following applicable NFPA 70 (NEC) lockout/tagout procedures. Do not over-torque — apply only enough torque to achieve firm seating without stripping the slot or distorting the binding head. Verify that the mating threaded hole is free of debris and that thread engagement is sufficient before final tightening.
