Value Collection 0516MPP 5-40x1in Pan Head Phillips Screw

Product Description

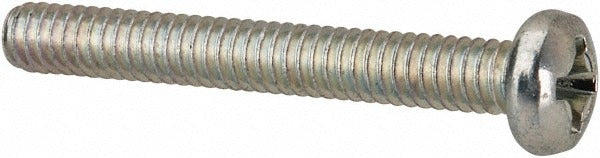

The VALUE COLLECTION 0516MPP is a 5-40 x 1 inch pan head machine screw designed for general-purpose mechanical fastening applications. The Phillips drive and pan head profile make it compatible with standard power and hand tools. Manufactured from steel with a zinc finish, this screw meets ASME B18.6.3 and SAE J82 standards for inch-series machine screws. The length measurement is taken under the head, giving an exact 1 inch of thread engagement into the mating material. Sold in a minimum order quantity of 100 pieces, this fastener suits production assembly, MRO restocking, and field service kits where consistent grade and finish are required.

This screw is suited for light to medium-duty fastening in metal, plastic, and composite assemblies. Common applications include panel mounting, enclosure assembly, equipment brackets, and component securing in HVAC, electrical, and general industrial settings. The zinc finish provides basic corrosion resistance in dry indoor environments. Trades professionals and assembly technicians working on control panels, junction boxes, and mechanical enclosures will find this screw a standard fit for everyday fastening tasks.

Key Features

• 5-40 thread size, inch-series, compliant with ASME B18.6.3 and SAE J82
• 1 inch length under head for accurate thread engagement measurement
• Pan head profile distributes clamping load across a wider bearing surface
• Phillips drive compatible with standard No. 2 Phillips bits and screwdrivers
• Steel construction with zinc finish for indoor corrosion resistance
• Minimum order quantity of 100 pieces suits production and MRO applications

Compatibility

Designed as a standard inch-series machine screw for use in threaded holes or with mating nuts conforming to 5-40 thread specification per ASME B18.6.3 and SAE J82.

Installation Notes

Installation is performed by hand or with a No. 2 Phillips screwdriver or power driver set to an appropriate torque setting for the mating material. Ensure the mating thread or nut is clean and free of debris before driving. Do not overtighten into plastic or thin-gauge sheet metal, as thread stripping can occur. Follow applicable assembly specifications for the equipment being serviced.
