Value Collection 03549037 Diamond Dresser 3/4 Carat

Product Description

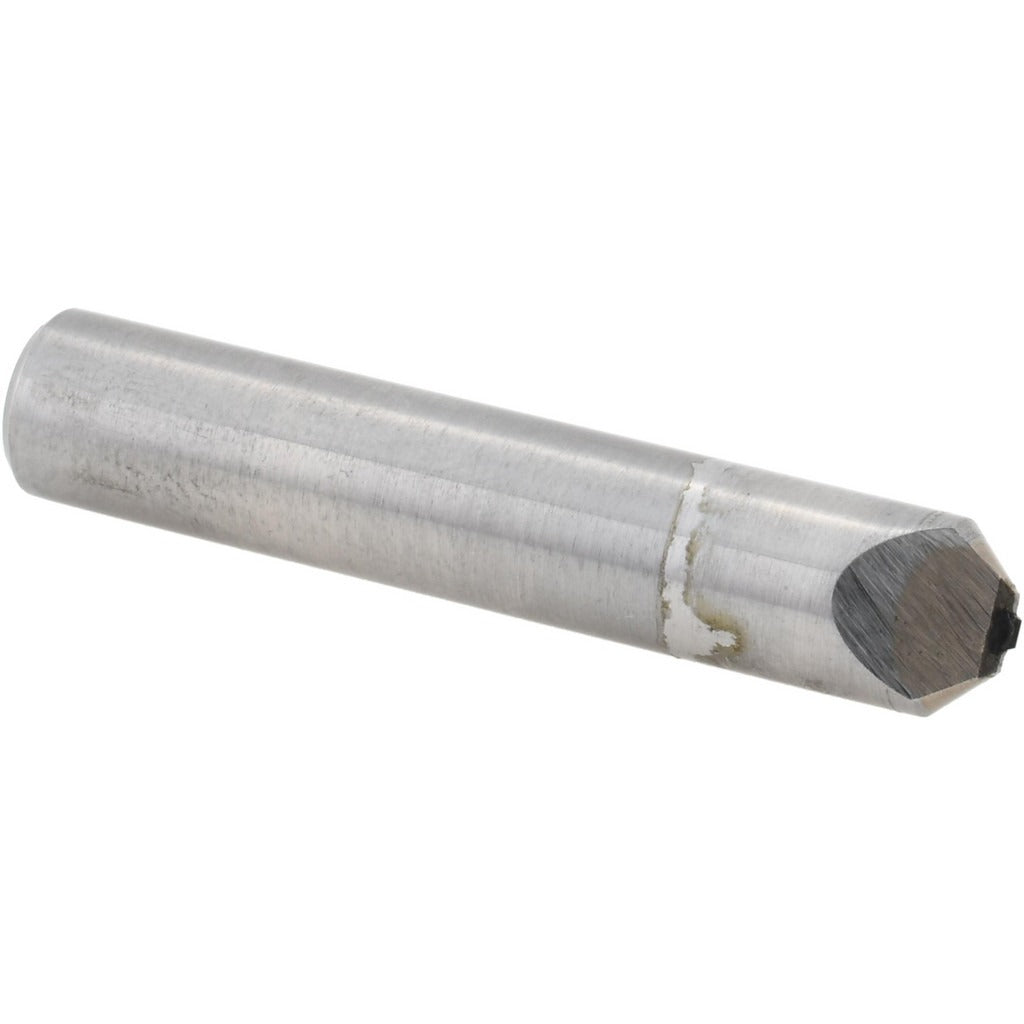

The VALUE COLLECTION 03549037 is a single-point diamond dresser designed for truing and dressing abrasive grinding wheels in machine shop and production grinding applications. The chisel-style tip is set at a 60-degree included angle and carries a 3/4-carat diamond, delivering consistent material removal and precise wheel profiling. The 3/8-inch diameter shank measures 2 inches in length, fitting standard tool post and holder setups used across surface, cylindrical, and bench grinders. Installation and operation are performed by machinists and grinding technicians working to maintain wheel geometry and surface finish tolerances.

This diamond dresser is suited for light to medium-duty dressing tasks in both job shop and production environments. The chisel point geometry is effective for general-purpose grinding wheel conditioning where a defined contact edge is required. It is commonly mounted in a fixed dresser holder or radius dresser attachment on manual and CNC grinding machines. The 3/8-inch shank size is a widely used standard that fits most commercial dresser holders without modification.

Key Features

• 3/4-carat diamond for durable, long-service wheel dressing
• Chisel point geometry with 60-degree included angle for controlled contact
• Single-point configuration for precise truing and profiling
• 3/8-inch shank diameter fits standard dresser holders
• 2-inch shank length provides secure tool post engagement

Compatibility

Designed as a standard single-point diamond dresser for use with abrasive grinding wheels on surface, cylindrical, and bench grinding machines equipped with a 3/8-inch dresser holder.

Installation Notes

Diamond dressers are installed by machinists or grinding technicians. Power down and lock out the grinding machine before mounting or removing the dresser. Secure the shank firmly in the holder with no overhang beyond what the application requires, and verify the diamond tip is oriented correctly before resuming machine operation. Never apply side loads or impact force to the diamond tip during installation.
