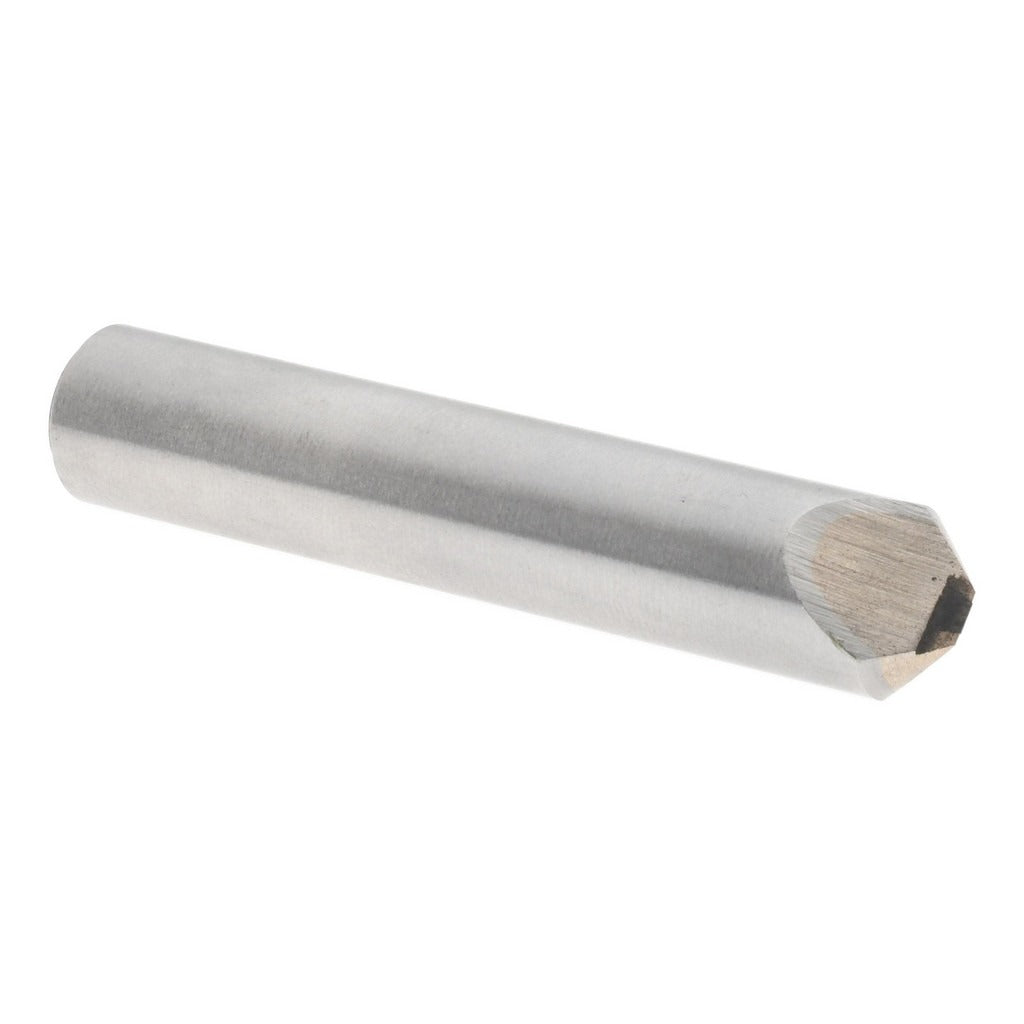

Value Collection 03549011 Diamond Dresser Chisel Point

Product Description

The VALUE COLLECTION 03549011 is a single-point diamond dresser designed for precision dressing and truing of grinding wheels. It features a chisel-style point with a 60-degree included angle and a 1/3-carat diamond, delivering consistent material removal and accurate wheel profiles. The 3/8-inch shank diameter and 2-inch shank length provide secure mounting in standard tool holders and dresser blocks. This dresser is suited for use in machine shops and grinding operations where wheel geometry must be maintained to tight tolerances. Installation is typically performed by machinists or toolroom technicians.

This diamond dresser is used in surface grinding, cylindrical grinding, and tool and cutter grinding applications. It is appropriate for dressing aluminum oxide and silicon carbide grinding wheels across a range of grit sizes. The chisel point geometry is well suited for roughing passes and for restoring wheel face profiles. It is commonly found in production machine shops, maintenance grinding departments, and precision toolrooms handling both ferrous and non-ferrous workpieces.

Key Features

• Single-point chisel diamond for consistent wheel dressing performance
• 1/3-carat diamond size for extended service life under normal dressing loads
• 60-degree included angle on chisel point for effective material removal
• 3/8-inch shank diameter fits standard dresser holders and grinding machine tool posts
• 2-inch shank length provides adequate reach and rigid support in the holder

Compatibility

Designed as a standard single-point diamond dresser for use with conventional grinding machines that accept a 3/8-inch shank dresser holder.

Installation Notes

Installation is performed by machinists or toolroom personnel. Power down and lock out the grinding machine before mounting or removing the dresser. Secure the shank firmly in the dresser holder to prevent movement during wheel contact. Follow the machine manufacturer's guidelines and applicable shop safety procedures when performing wheel dressing operations.
