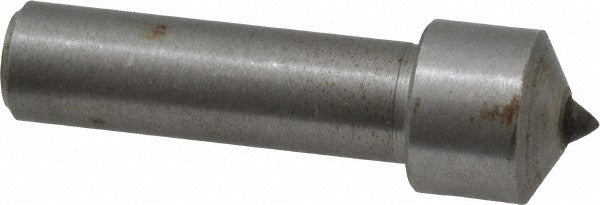

Value Collection 03535036 Single Point Diamond Dresser

Product Description

The VALUE COLLECTION 03535036 is a single point diamond dresser used to true and dress abrasive grinding wheels. The tool features a 3/4 carat diamond tip bonded at the point, delivering consistent material removal and precise wheel profiling. The shank measures 7/16 inches in diameter and 1-1/2 inches in length, with a 5/8 inch head diameter. Machinists, tool and die makers, and grinding machine operators use this dresser to restore wheel geometry and surface condition. The non-resettable single point design makes it a direct-use consumable that is replaced once the diamond wears beyond serviceable limits.

This diamond dresser is suited for use on surface grinders, cylindrical grinders, and bench grinders in machine shop, manufacturing, and maintenance environments. It fits standard tool post and radius dresser fixtures that accept a 7/16 inch shank. Typical applications include dressing aluminum oxide and silicon carbide wheels used in precision grinding operations. The compact head and standard shank geometry allow installation in a wide range of dresser holders without modification.

Key Features

• Single point diamond tip with 3/4 carat diamond for consistent wheel truing and dressing
• 7/16 inch shank diameter fits standard dresser holders and tool post fixtures
• 1-1/2 inch shank length provides adequate reach for common grinding setups
• 5/8 inch head diameter suits typical wheel face dressing applications
• Non-resettable construction — replace when diamond tip is spent
• Lightweight at 0.2 pounds for easy handling and installation

Compatibility

Designed for use with standard tool post dresser holders and radius dresser fixtures that accept a 7/16 inch diameter shank, commonly found on surface grinders, cylindrical grinders, and bench grinder dressing attachments.

Installation Notes

Installation is performed by machinists or grinding machine operators. Power down and lock out the grinding machine before mounting or removing the dresser. Secure the shank firmly in the dresser holder to prevent movement during dressing passes, which can chip the diamond tip. Follow machine manufacturer guidelines and applicable shop safety procedures when dressing grinding wheels.
