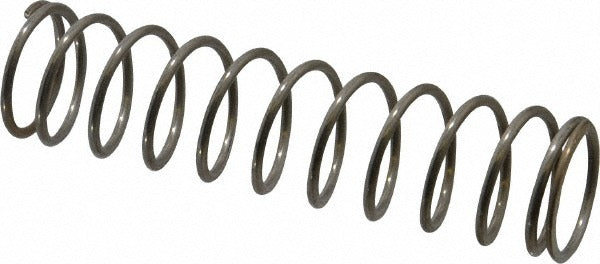

Value Collection 03309317 Compression Spring 0.975 in Od

Product Description

The VALUE COLLECTION 03309317 is a stainless steel compression spring designed for applications requiring controlled resistance and consistent return force. With an outside diameter of 0.975 inches and a free length of 4 inches, this spring delivers a spring rate of 6.88 pounds per inch and a maximum work load of 18.67 pounds. The 0.08-inch wire diameter provides a balance of flexibility and load capacity. Stainless steel construction offers corrosion resistance suitable for demanding industrial, mechanical, and trade service environments. Installed by maintenance technicians, millwrights, and mechanical assemblers across a wide range of equipment and machinery.

This compression spring fits into holes up to 1 inch in diameter and compresses to a solid height of 0.954 inches. It is suited for use in industrial machinery, HVAC equipment assemblies, plumbing valve mechanisms, and general mechanical assemblies where a compact, corrosion-resistant compression spring is required. The spring is sold in a package quantity of 5, making it practical for service and repair operations that require replacement stock on hand.

Key Features

• Stainless steel construction provides corrosion resistance for wet and harsh service environments
• Outside diameter of 0.975 inches fits standard 1-inch bore holes
• Spring rate of 6.88 pounds per inch for predictable, linear load response
• Maximum work load rated at 18.67 pounds
• Solid height of 0.954 inches limits over-compression in close-tolerance assemblies
• Package quantity of 5 supports service and replacement stocking needs

Compatibility

Designed as a general-purpose replacement compression spring for mechanical assemblies requiring a 0.975-inch outside diameter, 4-inch free length, and 1-inch maximum hole diameter fitment.

Installation Notes

Install and replace compression springs only after de-energizing or depressurizing the equipment in which the spring is seated. Confirm bore diameter and free length clearance before installation to avoid binding or premature coil contact. Use appropriate hand tools and wear eye protection when compressing or releasing spring tension during service. Follow the equipment manufacturer's service documentation and applicable mechanical codes for proper spring replacement procedures.
