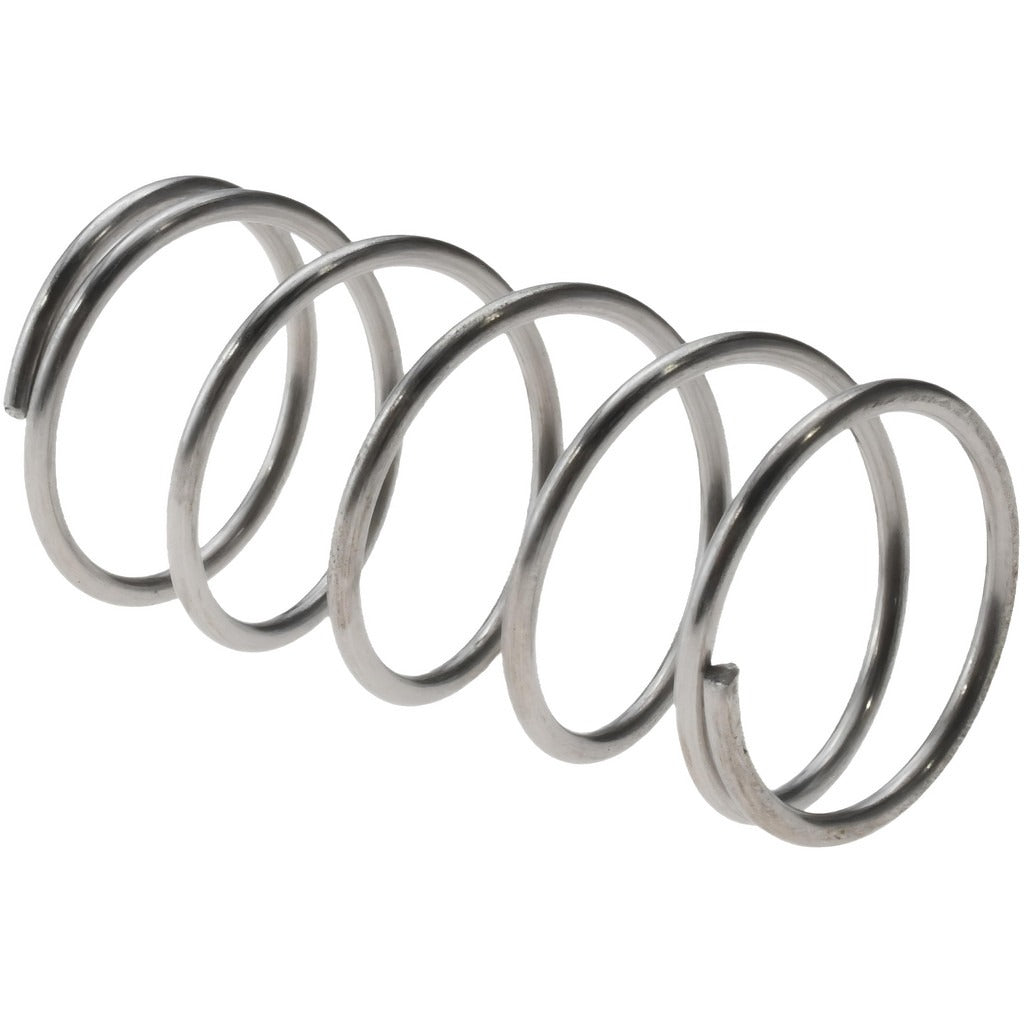

Value Collection 03309226 Compression Spring 0.975in Od

Product Description

The VALUE COLLECTION 03309226 is a stainless steel compression spring designed for general mechanical and industrial applications. With an outside diameter of 0.975 inches and a free length of 2 inches, it delivers a spring rate of 10.11 lb/in and supports a maximum work load of 13.92 pounds. The 0.072-inch wire diameter provides consistent force characteristics across the compression cycle. Stainless steel construction offers corrosion resistance in environments where carbon steel would degrade. Maintenance technicians, machine builders, and mechanical assemblers use this type of spring in valves, actuators, fixtures, and equipment assemblies where reliable return force is required.

This compression spring suits residential and light commercial mechanical assemblies, pneumatic and hydraulic valve stacks, tooling fixtures, and industrial equipment requiring a compact return-force element. The 1-inch hole diameter fit and 0.455-inch solid height make it appropriate for applications with defined cavity dimensions. It is sold in a package quantity of 5, making it practical for service kits or small-run assembly needs.

Key Features

• Outside diameter of 0.975 inches fits standard 1-inch bore cavities
• Free length of 2 inches with a solid height of 0.455 inches
• Spring rate of 10.11 lb/in for predictable, linear compression behavior
• Maximum work load rated at 13.92 pounds
• 0.072-inch wire diameter for consistent coil geometry
• Stainless steel construction resists corrosion and oxidation
• Sold in a package of 5 for service and assembly use

Compatibility

Designed as a general-purpose compression spring suitable for mechanical assemblies, valve bodies, and industrial fixtures requiring a 0.975-inch OD spring with a 2-inch free length and 10.11 lb/in spring rate.

Installation Notes

Installation is performed by mechanical assemblers or maintenance technicians using standard hand tools. De-energize and depressurize any system before removing or replacing compression springs in valve or actuator assemblies. Verify cavity bore diameter, travel distance, and load requirements against spring specifications before installation. Never compress the spring beyond its solid height of 0.455 inches during assembly or operation.
