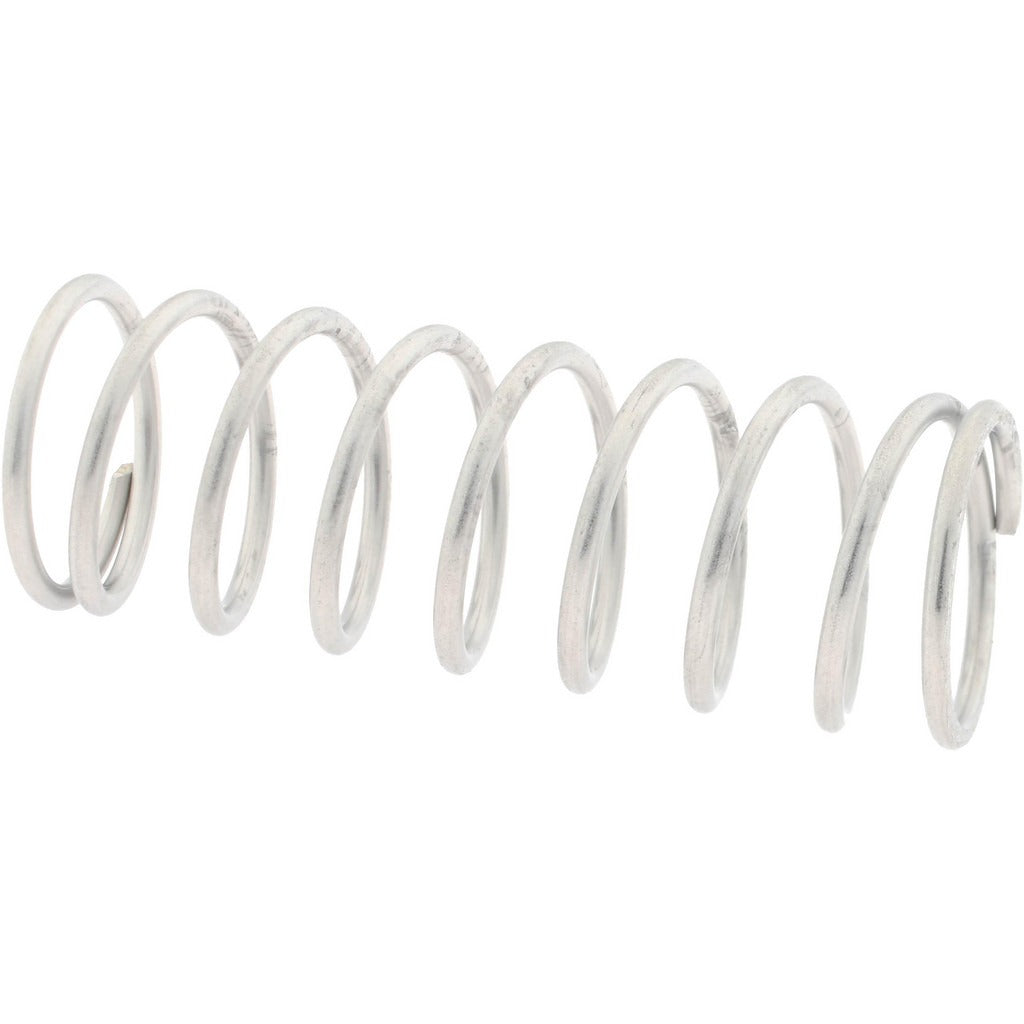

Value Collection 03308863 Compression Spring 0.72in Od

Product Description

The VALUE COLLECTION 03308863 is a stainless steel compression spring designed for general mechanical and industrial applications. With an outside diameter of 0.72 inches and a free length of 2 inches, this spring delivers a spring rate of 9.4 pounds per inch and a maximum work load of 12.27 pounds. The 0.062-inch wire diameter and stainless steel construction make it suitable for environments where corrosion resistance and consistent load performance are required. Licensed trades and maintenance professionals working in mechanical assemblies, fluid systems, and equipment fabrication will find this spring ready for direct installation or retrofit use.

This compression spring is appropriate for a wide range of residential and commercial mechanical applications, including valve assemblies, pneumatic components, tooling fixtures, and general equipment maintenance. The 0.75-inch hole diameter fitment and 0.533-inch solid height allow it to be used in compact spring pockets where space and load precision are both important factors. It fits in applications governed by standard mechanical tolerances and is suited for both original assembly and field replacement service work.

Key Features

• Outside diameter of 0.72 inches for precise fit in standard spring pockets
• Free length of 2 inches with a solid height of 0.533 inches
• Spring rate of 9.4 pounds per inch for predictable load deflection
• Maximum work load of 12.27 pounds
• 0.062-inch wire diameter stainless steel construction for corrosion resistance
• Fits holes up to 0.75 inches in diameter

Compatibility

Designed as a general-purpose replacement or original-install compression spring suitable for mechanical assemblies requiring a 0.72-inch OD, 2-inch free length spring with a 9.4 pounds per inch rate.

Installation Notes

Installation is typically performed by mechanical technicians or maintenance professionals familiar with spring-loaded assemblies. De-energize and relieve any system pressure before disassembling the spring pocket or housing. Use appropriate hand tools and wear eye protection, as compressed springs can release stored energy suddenly during removal or installation. Verify the spring rate and load capacity match the design requirements of the assembly before finalizing installation.
