Value Collection 03308798 Compression Spring 0.72in Od

Product Description

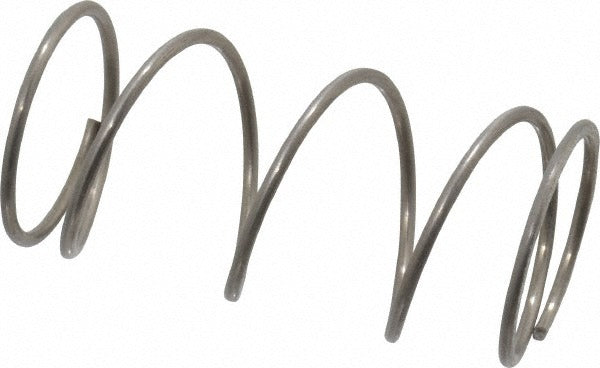

The VALUE COLLECTION 03308798 is a stainless steel compression spring designed for light-duty mechanical and industrial applications. With an outside diameter of 0.72 inches and a free length of 1.5 inches, this spring provides a rated spring rate of 5.13 pounds per inch and a maximum work load of 5.66 pounds. The wire diameter measures 0.047 inches, and the solid height is 0.269 inches. Stainless steel construction offers corrosion resistance in wet or chemically exposed environments. This spring is sold in packages of 10 units per order.

This compression spring suits applications in HVAC equipment, plumbing assemblies, electrical enclosures, and general mechanical systems where a small-format spring with moderate load capacity is required. It fits into a hole diameter of 0.75 inches, making it compatible with standard spring pockets and housings in that size range. Technicians and assemblers working on component-level repairs or custom fabrications will find this spring appropriate for valve mechanisms, pressure-relief assemblies, and similar light-load uses.

Key Features

• Stainless steel construction resists corrosion in wet or chemically active environments
• Outside diameter of 0.72 inches fits standard 0.75-inch hole pockets
• Spring rate of 5.13 pounds per inch for predictable, linear load response
• Maximum work load of 5.66 pounds supports light-duty compression applications
• Wire diameter of 0.047 inches with a solid height of 0.269 inches
• Packaged in quantities of 10 for small-batch repair or assembly use

Compatibility

Designed as a general-purpose replacement or assembly compression spring for mechanical systems requiring a 0.72-inch OD, 1.5-inch free length spring with a 0.75-inch hole diameter fit.

Installation Notes

Install this compression spring using hand tools appropriate for the host assembly. Ensure the mating hole or bore diameter is within tolerance of 0.75 inches before seating the spring. Power down or depressurize any system before replacing springs in valve or pressure-relief assemblies. Do not compress the spring beyond its solid height of 0.269 inches during installation.
