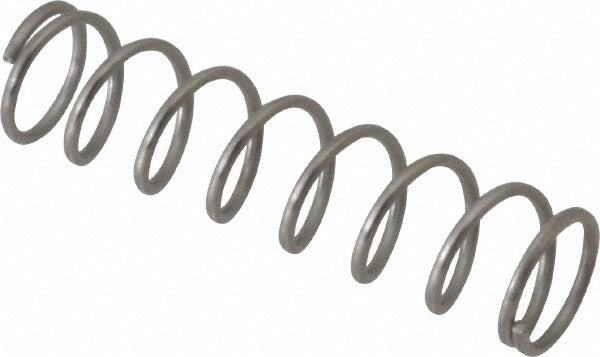

Value Collection 03307949 Compression Spring 0.24in Od

Product Description

The VALUE COLLECTION 03307949 is a stainless steel compression spring designed for light-duty mechanical applications requiring consistent, repeatable force. With a 0.24 inch outside diameter and a 1 inch free length, this spring delivers a spring rate of 4.58 pounds per inch and supports a maximum work load of 2.77 pounds. The 0.026 inch wire diameter gives it a compact, fine-coil construction suited for use in tight assemblies. Machinists, maintenance technicians, and mechanical assemblers install this spring in fixtures, tooling, and general mechanical applications where corrosion resistance and dimensional precision are required.

This compression spring is suited for use in industrial, commercial, and light manufacturing environments where a small-diameter, short-travel spring is needed. Its stainless steel construction resists corrosion in wet or chemically exposed environments. It fits into a mounting hole with a 0.25 inch inside diameter, making it compatible with standard small-bore spring pockets in mechanical assemblies, jigs, valves, and similar equipment.

Key Features

• 0.24 inch outside diameter for compact, tight-space installations
• 4.58 lb/in spring rate provides consistent, predictable force output
• 2.77 pound maximum work load rating
• 0.026 inch wire diameter with a solid height of 0.306 inches
• Stainless steel construction resists corrosion and oxidation
• Fits a 0.25 inch mounting hole diameter

Compatibility

Designed as a general-purpose compression spring for mechanical assemblies, tooling, fixtures, and equipment requiring a 0.24 inch OD spring with a 1 inch free length and 0.25 inch hole diameter fitment.

Installation Notes

Compression springs of this size are typically installed by machinists or mechanical technicians during assembly or maintenance of mechanical equipment. Ensure the mating bore and spring pocket dimensions match the 0.25 inch hole diameter and 1 inch free length before installation. Do not compress the spring beyond its solid height of 0.306 inches, as doing so may cause permanent deformation. Inspect the spring seat and mating surfaces for burrs or debris before seating the spring.
