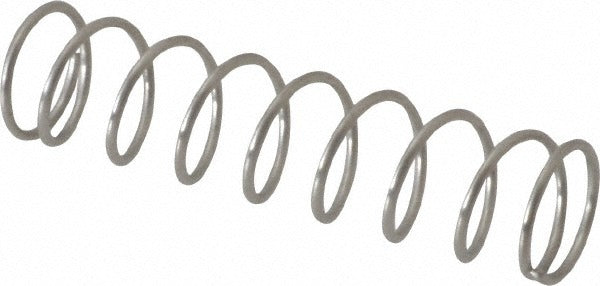

Value Collection 03307907 Compression Spring 0.24in Od

Product Description

The VALUE COLLECTION 03307907 is a small-diameter compression spring manufactured from stainless steel and intended for light-duty mechanical assemblies, fixtures, and tooling applications. With an outside diameter of 0.24 inches and a free length of 1 inch, this spring delivers a spring rate of 2.28 lb/in and a maximum work load of 1.47 lb. The stainless steel construction resists corrosion and oxidation, making it suitable for environments where carbon steel springs would degrade. Maintenance technicians, machine builders, and assembly professionals working with light-load mechanisms are the primary users of this component.

This compression spring fits applications requiring a 0.24-inch OD, with a rated hole diameter of 0.25 inches. It is commonly used in small mechanical assemblies, valve mechanisms, electronic enclosures, and general industrial fixtures where a controlled, low-force return load is needed. The solid height of 0.217 inches and wire diameter of 0.02 inches make this spring appropriate for compact spaces with limited axial travel.

Key Features

• Stainless steel construction for corrosion resistance in demanding environments
• Spring rate of 2.28 lb/in for consistent, predictable load deflection behavior
• Maximum work load of 1.47 lb to prevent overloading in light-duty assemblies
• Compact 0.24-inch OD fits into confined mechanical spaces
• Solid height of 0.217 inches for applications with tight compression limits
• Packaged in a quantity of 10 per pack, suitable for single-unit or multi-unit servicing

Compatibility

Designed as a standard-dimension compression spring for light-load mechanical assemblies requiring a 0.24-inch outside diameter, a 0.25-inch hole diameter, and a 1-inch free length.

Installation Notes

Installation of compression springs is typically performed by mechanical technicians or assembly professionals. Always relieve any stored mechanical load or pressure in the assembly before removing or installing a spring. Confirm that the mating hole diameter, seat geometry, and compressed working length are within the rated values before final assembly. Avoid compressing this spring beyond its solid height of 0.217 inches, as doing so can cause permanent set and reduce service life.
