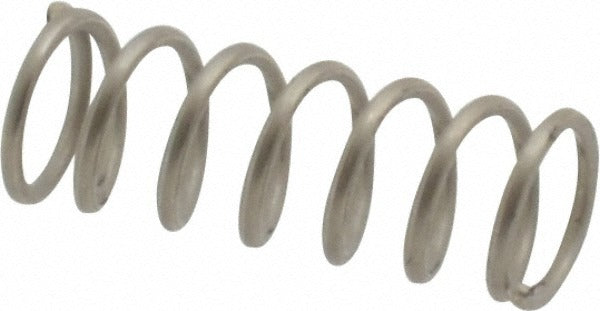

Value Collection 03307824 Compression Spring 0.18in Od

Product Description

The VALUE COLLECTION 03307824 is a miniature compression spring manufactured from stainless steel, designed to provide consistent axial load resistance in compact assemblies. With an outside diameter of 0.18 inches and a free length of 0.50 inches, this spring fits tight-clearance applications where space is limited. The wire diameter measures 0.02 inches, delivering a spring rate of 8.17 pounds per inch and a maximum working load of 1.94 pounds. Its stainless steel construction resists corrosion, making it suitable for environments exposed to moisture, mild chemicals, or temperature cycling. Machinists, maintenance technicians, and assembly professionals select this spring for precision mechanical and electromechanical applications.

This compression spring is suited for use in small-scale mechanical assemblies, instrumentation, valves, switches, latches, and similar light-duty applications requiring controlled return force. The 0.18-inch OD is sized to fit a hole diameter of 0.188 inches, allowing it to seat securely in a bored pocket or housing. It is also compatible with guide pins or mandrels up to the appropriate inner diameter. Sold in packages of 10 units, this spring is practical for maintenance stock, prototype development, and low-volume assembly work.

Key Features

• Outside diameter of 0.18 inches fits tight bore pockets and housings
• Spring rate of 8.17 pounds per inch provides predictable, linear load response
• Maximum working load of 1.94 pounds suits light-duty compression applications
• Stainless steel construction resists corrosion and oxidation
• Solid height of 0.184 inches limits over-compression in constrained assemblies
• Packaged in quantities of 10 for maintenance and assembly stock

Compatibility

Designed as a general-purpose miniature compression spring for use in small mechanical assemblies, instrumentation, valves, and switch mechanisms where a 0.18-inch OD and 0.50-inch free length are required.

Installation Notes

Installation is typically performed by mechanical assemblers or maintenance technicians using hand tools or precision pick-and-place equipment. Ensure the mating bore or housing diameter does not exceed 0.188 inches to maintain proper spring seating. Avoid over-compressing the spring beyond its solid height of 0.184 inches, as this can cause permanent set and loss of load capacity. Verify the spring is fully seated and aligned axially before completing the assembly.
