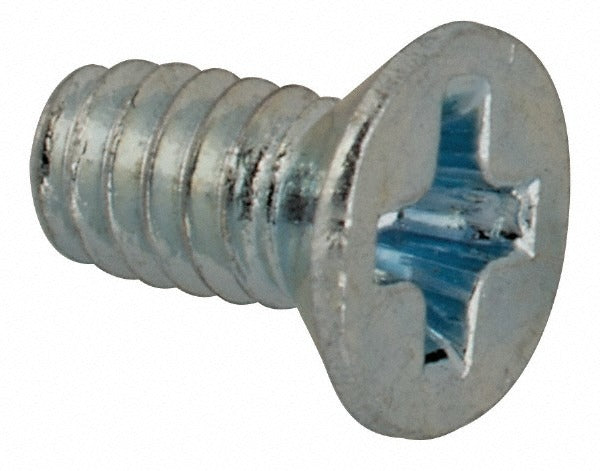

Value Collection 0203MPF 2-56 Flat Head Phillips Machine Screw

Product Description

The VALUE COLLECTION 0203MPF is a 2-56 flat head Phillips machine screw intended for precision fastening applications in mechanical assemblies, electronics, and light-duty equipment. Built from steel with a zinc finish, this screw meets ASME B18.6.3 and SAE J82 standards. The flat head profile sits flush with or below the mating surface, making it well suited for applications where a low-profile fastener is required. At 3/16 inches overall length, it is sized for thin-panel and close-tolerance work. Installation requires a Phillips driver in the appropriate size for a No. 2-56 thread.

This screw is used across a wide range of light mechanical and electronic assembly applications. The 2-56 thread size is common in instrument panels, small enclosures, PCB standoff fastening, and HVAC control board housings. The zinc finish provides basic corrosion resistance suitable for indoor and light-duty environments. This item is sold in multiples of 100 units per order.

Key Features

• 2-56 UNC thread for use in standard No. 2 tapped holes
• Flat head profile allows flush or countersunk installation
• Phillips drive for high-speed assembly and standard driver compatibility
• Steel construction with zinc finish for corrosion resistance in indoor environments
• Meets ASME B18.6.3 and SAE J82 fastener standards
• 3/16 inches overall length suits thin-panel and close-clearance applications

Compatibility

Designed for use in any application requiring a 2-56 thread, flat head, Phillips drive machine screw per ASME B18.6.3 and SAE J82 standards.

Installation Notes

Install using a Phillips screwdriver or bit sized for No. 2-56 machine screws. Ensure the receiving hole is properly tapped to 2-56 UNC before installation. Power down or de-energize any equipment before fastening hardware near live electrical components. Do not overtorque; the small thread size is susceptible to stripping in soft substrate materials.
