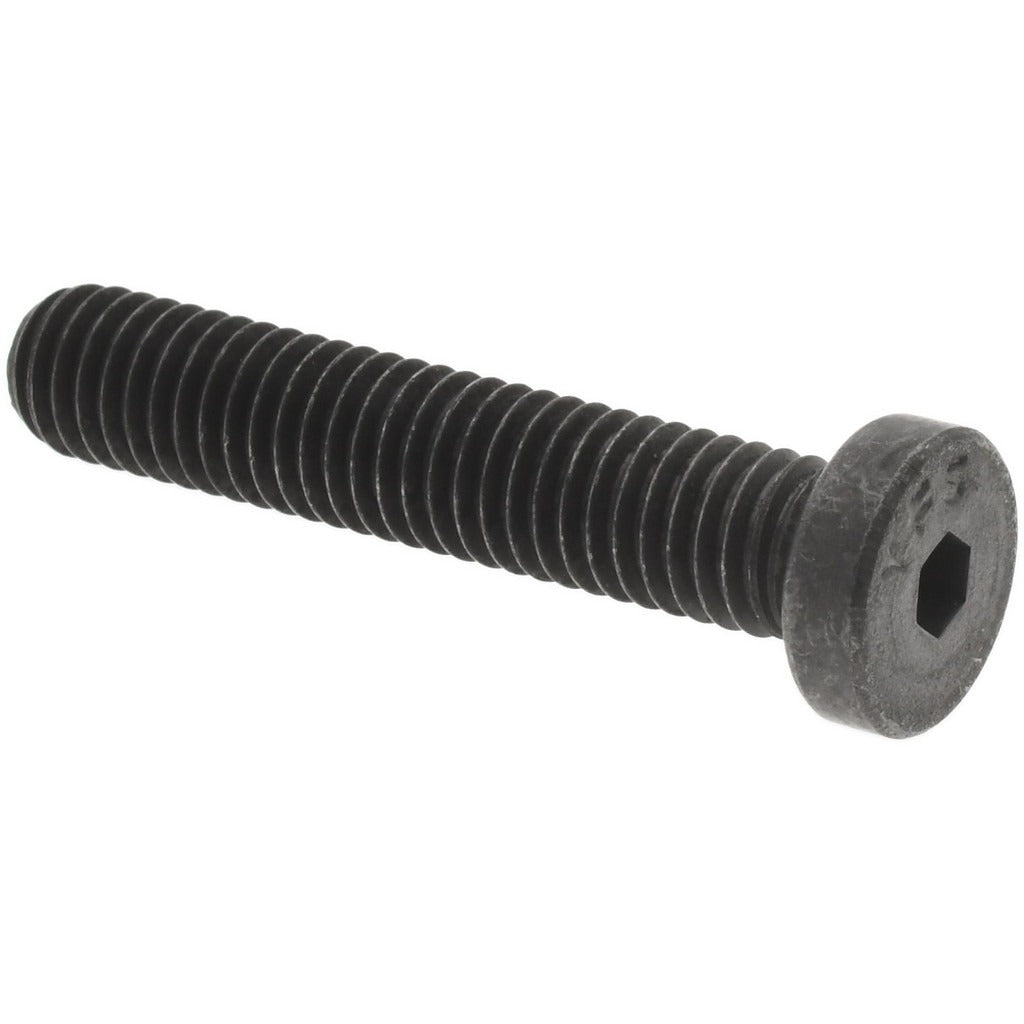

Value Collection 019131PR Low Socket Cap Screw 10-32x1

Product Description

The VALUE COLLECTION 019131PR is a low socket cap screw designed for applications where a reduced head profile is required without sacrificing clamping strength. Machined from alloy steel with a black oxide finish, this fastener resists corrosion and blends into dark assemblies. It is sized at 10-32 with a 1-inch length measured under the head and is fully threaded along that length. Drive engagement uses a 3/32-inch hex socket key. This screw meets ASME/ANSI B18.8 standards and carries a UNF thread form, making it a reliable choice for precision mechanical assemblies, tooling, and light structural work.

Low socket cap screws in this size range are commonly used in machine tool fixtures, instrument panels, enclosures, and mechanical subassemblies where standard socket cap heads are too tall to clear adjacent components. The 10-32 UNF thread provides fine-pitch engagement suitable for thin materials and applications requiring accurate torque control. Installation is typically performed by machinists, maintenance technicians, or industrial assemblers working on ferrous or non-ferrous metal components.

Key Features

• Low socket cap head profile reduces clearance requirements compared to standard socket cap heads
• Alloy steel construction for high tensile strength in demanding fastening applications
• Black oxide finish provides mild corrosion resistance and a low-reflectance appearance
• Fully threaded along the 1-inch under-head length for maximum thread engagement
• 3/32-inch hex socket drive for precise torque application with a standard hex key or Allen driver
• Meets ASME/ANSI B18.8 fastener standard for dimensional consistency

Compatibility

Designed as a standard UNF 10-32 low socket cap screw per ASME/ANSI B18.8, suitable for use in any application requiring a 10-32 fully threaded low-head hex socket fastener with a 1-inch under-head length.

Installation Notes

Install and remove using a 3/32-inch hex key or ball-end Allen driver. Ensure the mating threaded hole or nut is clean and free of debris before installation to protect the UNF thread form. When installing into blind tapped holes, verify thread depth is sufficient for the full 1-inch threaded length. Do not exceed the recommended torque for 10-32 alloy steel fasteners as specified by your assembly documentation or applicable industry standards.
