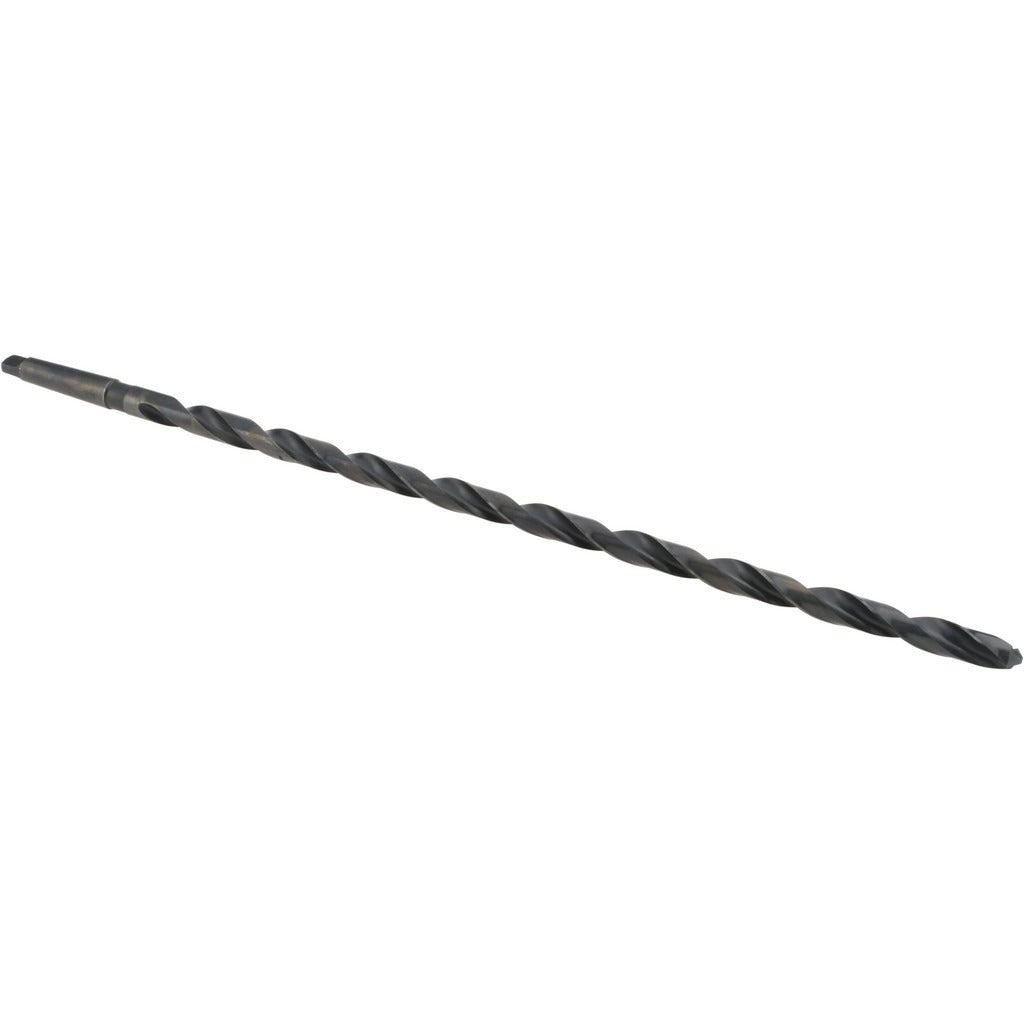

Value Collection 01665447 Taper Shank Drill Bit 11/16in 2MT Hss

Product Description

The VALUE COLLECTION 01665447 is a taper shank drill bit designed for general-purpose drilling in metal, wood, and similar materials. It carries a 2MT (Morse Taper 2) shank that seats directly into compatible drill press spindles, lathes, and milling machine quills without a separate chuck. The cutting end is ground to a 118-degree standard point with web thinning to reduce thrust at entry. The flute and body are high-speed steel (HSS) with an oxide finish that provides light corrosion resistance and helps retain cutting lubricant. Machinists, tool-and-die technicians, and maintenance mechanics are the primary installers.

This bit is suited for production and maintenance drilling operations where a Morse Taper 2 spindle is available. With a 17-inch flute length and a 24-inch overall length, it handles deep-hole work that shorter jobber-length bits cannot reach. The right-hand spiral flute with regular helix evacuates chips efficiently in through-hole drilling. It is appropriate for ferrous and non-ferrous metals in both job-shop and plant-maintenance settings. General-purpose tool performance classification means it is not optimized for hardened alloys or interrupted cuts.

Key Features

• 2MT taper shank seats directly in Morse Taper 2 spindles — no chuck required
• 118-degree standard point with web thinning reduces entry thrust
• High-speed steel construction handles general-purpose metal drilling
• 17-inch flute length supports deep-hole drilling applications
• Oxide finish provides light corrosion resistance and lubricant retention
• Right-hand cutting, regular spiral flute for efficient chip evacuation

Compatibility

Designed for use in any machine spindle or adapter accepting a Morse Taper 2 (2MT) taper shank, including drill presses, lathes, and milling machines equipped with a 2MT quill or sleeve.

Installation Notes

Installation is performed by machinists or maintenance mechanics. Power down and lock out the machine before seating or removing the taper shank. Clean both the shank and the spindle socket of chips and oil before seating to ensure full taper contact. Use a drift and drift slot to remove the bit — never strike the spindle housing directly. Apply cutting fluid appropriate for the workpiece material to extend tool life.
