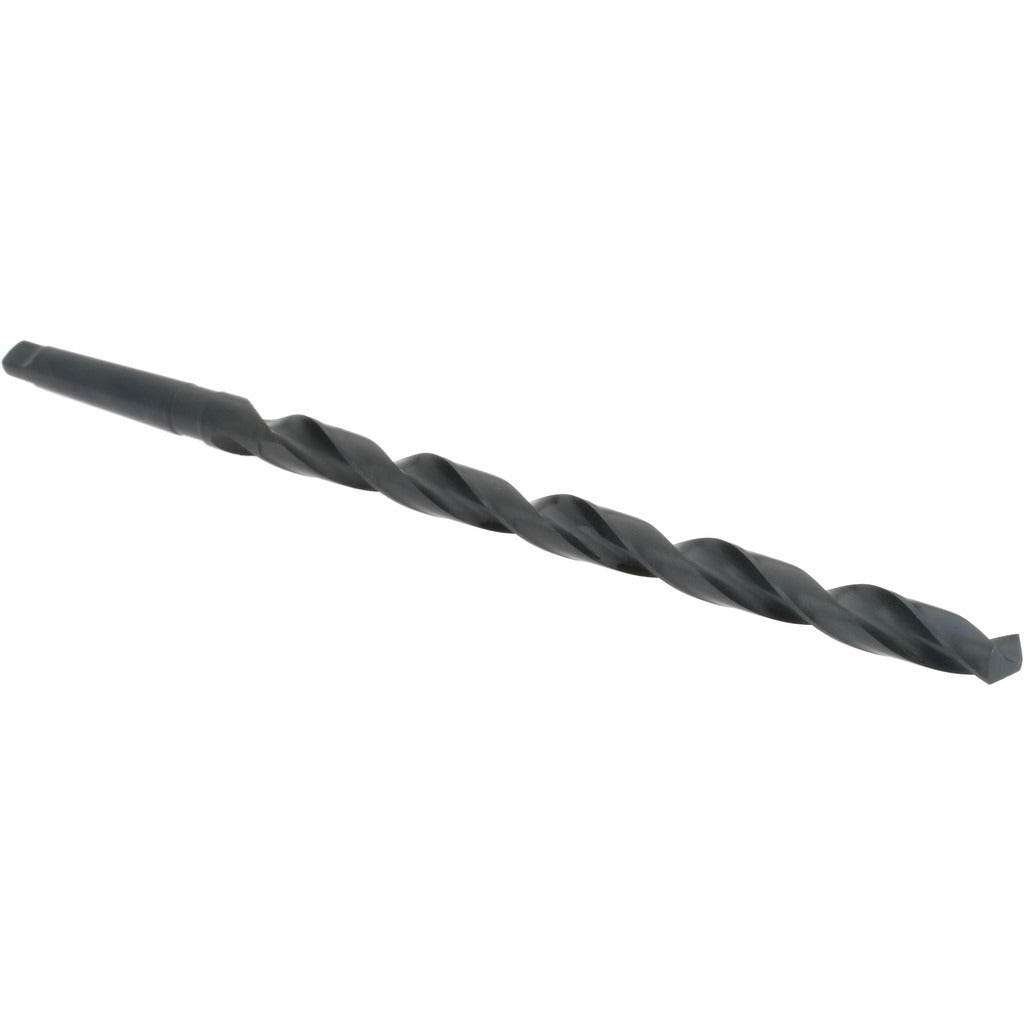

Value Collection 01663483 Taper Shank Drill Bit 3/4 in 2MT

Product Description

The VALUE COLLECTION 01663483 is a taper shank twist drill bit designed for general-purpose drilling in metal, wood, and similar materials. Built from high-speed steel with an oxide finish, it accepts a No. 2 Morse Taper (2MT) shank for use in drill presses, lathes, and milling machines equipped with a matching taper socket. The bit measures 3/4 inch in diameter with a 118-degree standard point angle and a web-thinned tip to reduce thrust and improve centering on entry. Machinists, toolroom technicians, and maintenance trades rely on this size for production and repair drilling where a rigid taper-mount setup is required.

This drill bit is suited for use in machine shop environments, job-site fabrication, and maintenance facilities where a 2MT spindle is available. It is configured for right-hand cutting with a regular spiral flute, making it compatible with standard drill press and lathe spindle rotation. The 10-inch flute length provides ample chip clearance in deep-hole applications, while the 15-inch overall length accommodates deeper setups or extended-reach fixtures. No coolant-through capability is present, so external cutting fluid application is recommended when drilling ferrous materials.

Key Features

• High-speed steel construction provides hardness and heat resistance for general-purpose metal drilling
• No. 2 Morse Taper (2MT) shank seats securely in matching taper-socket spindles without a separate chuck
• 118-degree standard point angle with web-thinned tip reduces walking and entry thrust
• 10-inch spiral flute length promotes efficient chip evacuation in deep-hole cuts
• Oxide finish offers mild corrosion resistance and lubricity during cutting
• Right-hand cutting direction compatible with standard spindle rotation on drill presses and lathes

Compatibility

Designed as a general-purpose replacement or stock taper shank drill bit for any drill press, lathe tailstock, or milling machine spindle fitted with a No. 2 Morse Taper socket.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Before inserting or removing the bit, power down the machine and confirm the spindle has come to a complete stop. Clean the taper socket and bit shank with a lint-free cloth before seating to ensure full contact and prevent slippage under load. Use a proper drift and soft mallet to release the taper shank from the spindle rather than striking the bit directly.
