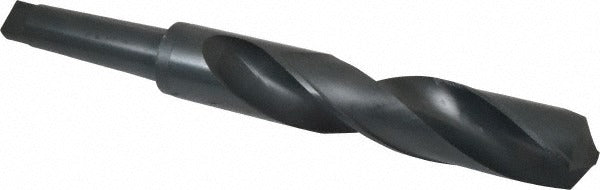

Value Collection 01552280 Taper Shank Drill Bit 5MT Hss

Product Description

The VALUE COLLECTION 01552280 is a taper shank drill bit designed for heavy-duty drilling in metal, steel, and similar materials. It measures 2.4375 inches in diameter and features a 5MT (Morse Taper No. 5) shank for direct mounting in compatible taper-socket spindles, tailstocks, and drill press quills. The 118-degree standard point with web thinning reduces thrust and improves centering on entry. High-speed steel (HSS) construction with an oxide finish provides adequate wear resistance for general-purpose drilling applications. The spiral flute geometry promotes chip evacuation throughout the 9.5-inch flute length.

This bit is suited for machine shop, fabrication, and industrial drilling operations where large-diameter holes are required in ferrous and non-ferrous stock. The 5MT taper shank fits heavy-duty drill presses, lathes, and milling machines equipped with No. 5 Morse Taper sockets. Right-hand cutting direction and regular spiral fluting make it appropriate for standard CNC and manual machine applications. General-purpose tool performance classification means it is intended for production and maintenance drilling at moderate feeds and speeds rather than high-performance or interrupted-cut work.

Key Features

• 2.4375-inch (2-7/16 inch) diameter for large-bore drilling in a single pass
• No. 5 Morse Taper (5MT) shank for direct-fit mounting without a chuck
• 118-degree standard point angle with web thinning for reduced entry thrust
• High-speed steel construction with oxide finish for general-purpose wear resistance
• 9.5-inch spiral flute length supports chip clearance in deep drilling operations
• Right-hand cutting, regular spiral - compatible with standard machine spindle rotation

Compatibility

Designed to fit drill presses, lathes, and milling machines equipped with a No. 5 Morse Taper (5MT) socket. No coolant-through capability; intended for general-purpose dry or flood-coolant external applications.

Installation Notes

Installation is performed by machinists or tool-room technicians. Power down and lock out the machine before seating or removing the taper shank. Clean both the shank and the socket bore before insertion to ensure full taper contact and prevent fretting. A drift key and soft mallet are standard tools for seating and ejecting Morse Taper shanks; never strike the cutting end of the bit directly.
