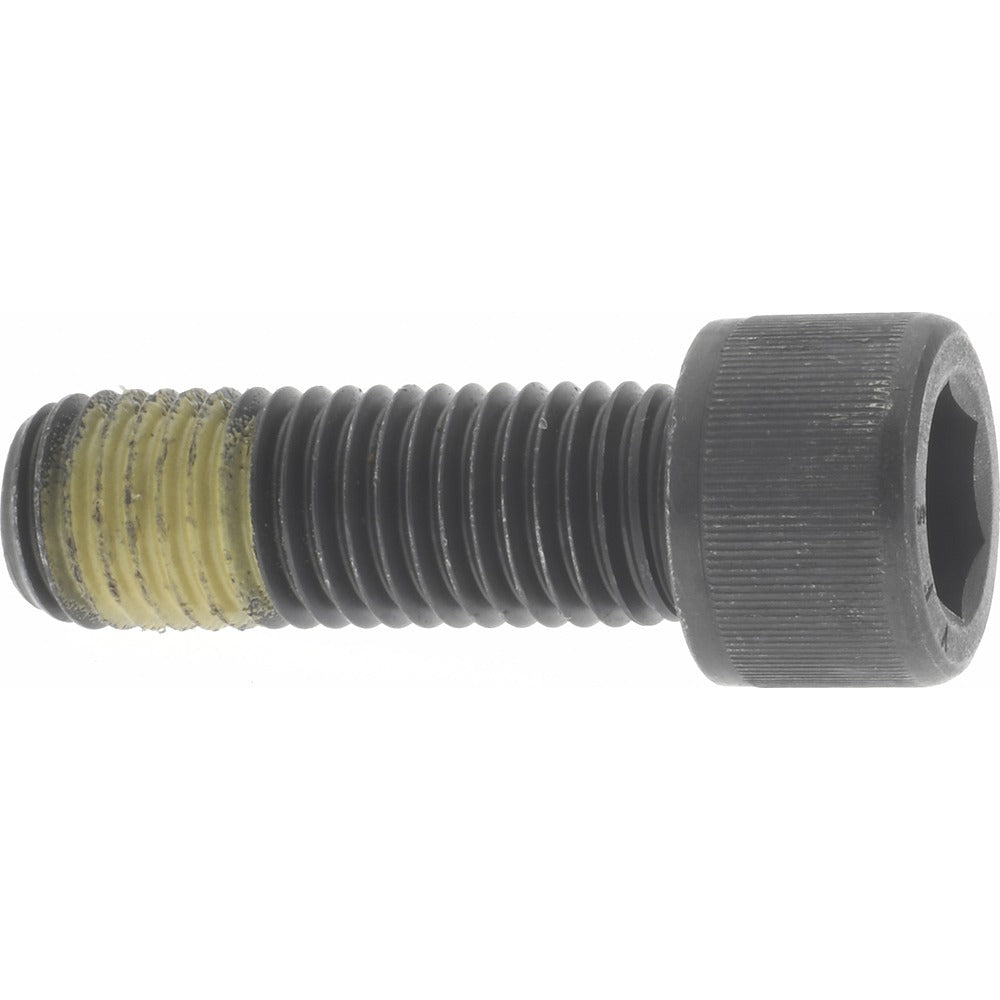

Value Collection 015467BR Hex Socket Cap Screw 3/4-10 Unc

Product Description

The VALUE COLLECTION 015467BR is a fully threaded hex socket cap screw designed for high-strength mechanical fastening applications. Manufactured from alloy steel and finished with a black oxide coating, this fastener provides solid corrosion resistance and reduces light reflection in service environments. The screw features a 3/4-10 UNC thread size with a 2.25-inch length under head and requires a 0.625-inch hex drive for installation. It conforms to ASME/ANSI B18.3, ASTM A574, and IFI 124 standards, making it suitable for precision-grade assemblies where fastener quality is critical. Machinists, millwrights, and maintenance technicians typically specify this fastener for structural and equipment assembly work.

This socket cap screw is appropriate for industrial, mechanical, and structural applications requiring a flush or recessed fastener head profile. The hex socket drive allows high torque application in confined spaces where a standard wrench cannot be used. It is well suited for machine frames, fixtures, dies, tooling plates, and general equipment assembly in both shop and field environments. The fully threaded shank maximizes thread engagement across the full clamped length.

Key Features

• Thread size 3/4-10 UNC for high load capacity in coarse-thread applications
• Fully threaded shank provides maximum thread engagement along the clamped length
• Alloy steel construction for superior tensile and shear strength
• Black oxide finish offers mild corrosion resistance and low-glare appearance
• 5/8-inch hex socket drive accommodates standard hex keys and socket drivers
• Meets ASME/ANSI B18.3, ASTM A574, and IFI 124 fastener standards

Compatibility

Designed as a standard 3/4-10 UNC hex socket cap screw for use in any application requiring a fastener conforming to ASME/ANSI B18.3, ASTM A574, or IFI 124 specifications.

Installation Notes

Installation requires a 5/8-inch hex key or socket driver of appropriate length and quality rating for the torque demands of the joint. Power down or de-energize any equipment before servicing fastened assemblies. Follow applicable industry torque specifications for the joint material and fastener grade. Inspect threads and mating tapped holes for damage or contamination before assembly to ensure full thread engagement.
