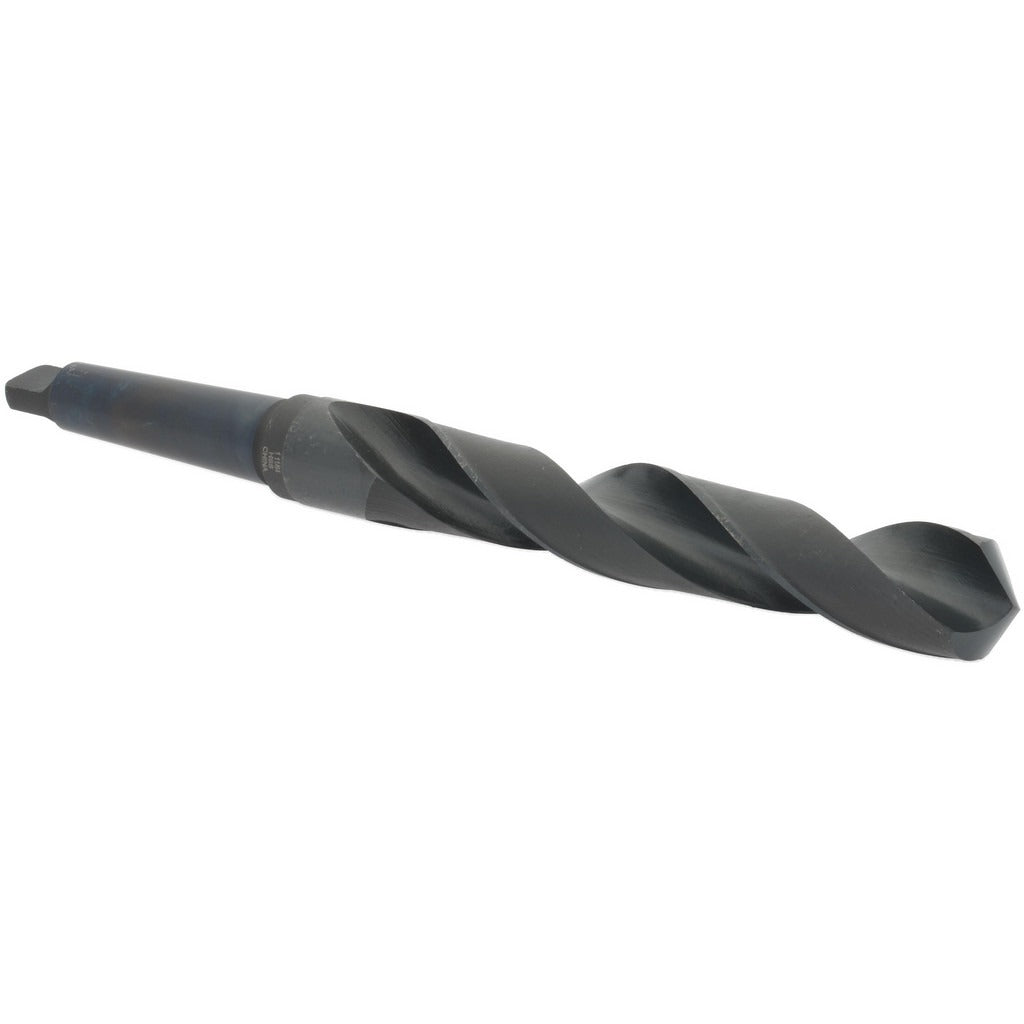

Value Collection 01531110 Taper Shank Drill Bit 3MT Hss

Product Description

The VALUE COLLECTION 01531110 is a taper shank drill bit engineered for general-purpose metal drilling in machine shop, maintenance, and industrial fabrication environments. The bit measures 1-11/64 inches (1.1719 inches decimal) in diameter with a 3MT Morse taper shank for secure mounting in drill presses, lathes, and milling machines equipped with a matching taper spindle. Constructed from high-speed steel with an oxide finish, it features a standard 118-degree point angle and a right-hand spiral flute for efficient chip evacuation. Installation is handled by machinists and industrial maintenance technicians.

This drill bit is suited for production and maintenance drilling applications where a large-diameter hole is required without the use of a straight-shank chuck. The 7-3/8-inch flute length allows deep-hole drilling passes, while the 12-inch overall length accommodates setups where extended reach is necessary. The regular spiral and web-thinned construction reduce entry resistance and improve performance in steel, cast iron, and similar ferrous materials commonly encountered in trade and industrial settings.

Key Features

• 1-11/64 inches (1.1719 inches) diameter for large-bore drilling
• 3MT Morse taper shank fits compatible drill press and lathe spindles
• 118-degree standard point angle for general-purpose metal drilling
• High-speed steel construction with oxide finish for wear resistance
• 7-3/8-inch spiral flute length supports deep drilling passes
• Web-thinned design reduces thrust and improves cutting efficiency
• Right-hand cutting direction, regular spiral flute

Compatibility

Designed for use in drill presses, lathes, and milling machines equipped with a No. 3 Morse taper (3MT) spindle or sleeve.

Installation Notes

This bit is installed by machinists or maintenance technicians into a 3MT taper spindle or adapter sleeve — ensure the taper socket is clean and free of burrs before seating. Power down and lock out the machine before inserting or removing the bit. Use a proper drift key and soft mallet to eject the bit from the taper; never strike the bit directly. Secure workpieces firmly and apply appropriate cutting fluid for ferrous materials to extend tool life.
