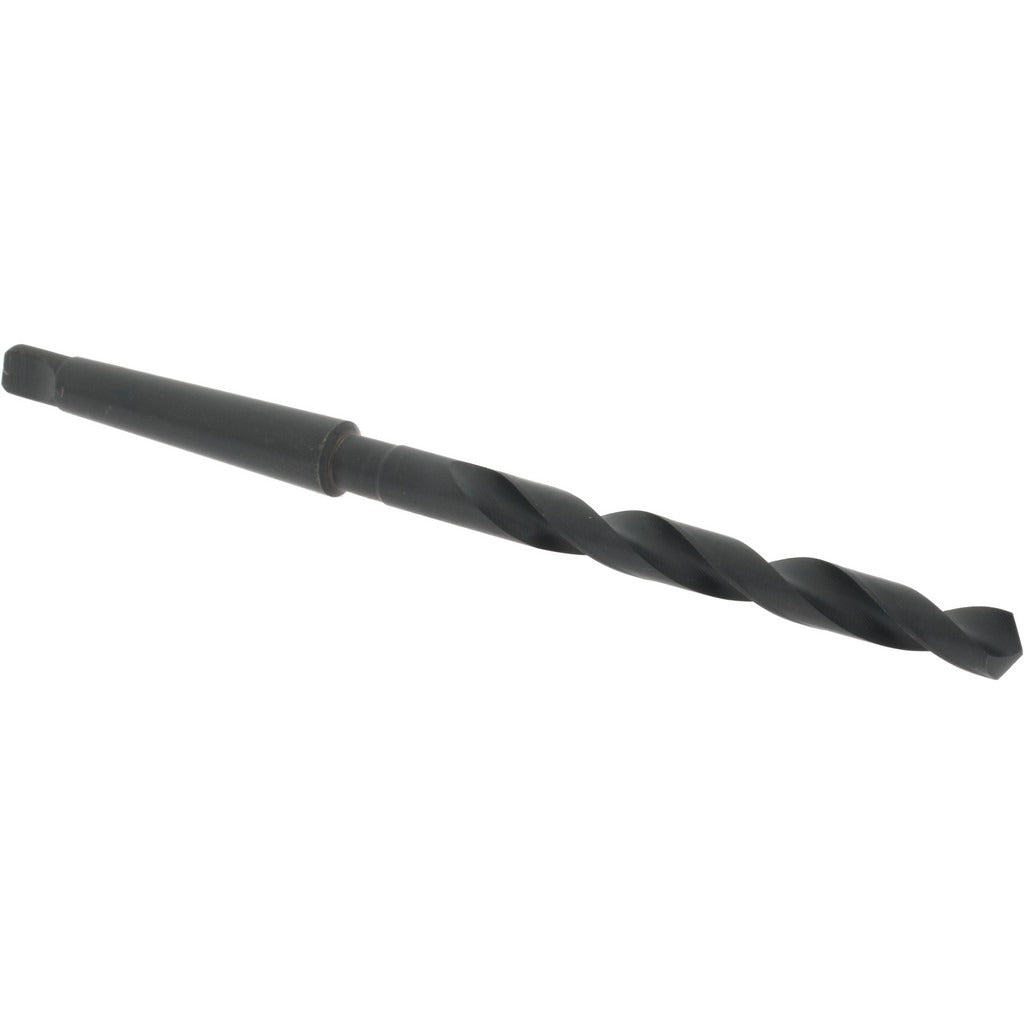

Value Collection 01510254 Taper Shank Drill Bit 25/64 in 1MT

Product Description

The VALUE COLLECTION 01510254 is a taper shank drill bit designed for precision hole-making in metal, wood, and general-purpose materials. It accepts a No. 1 Morse taper (1MT) shank, making it compatible with drill presses, lathes, and milling machines fitted with MT1 spindles or sleeves. The cutting end features a 118-degree standard point with web thinning for reduced thrust and easier center starting. Manufactured from high-speed steel (HSS) with an oxide finish for basic lubricity and corrosion resistance, this bit delivers reliable performance across common shop and field drilling applications. Licensed trades and machining professionals install and operate this tooling.

This drill bit is suited for use in machine shop environments, maintenance facilities, and fabrication operations where taper shank tooling is standard. The 25/64-inch diameter (0.3906 inches decimal) and 1MT shank size target drilling tasks on drill presses and lathes equipped with MT1 spindle bores. The spiral flute geometry in a regular right-hand cutting direction clears chips efficiently during through-hole and blind-hole drilling in ferrous and non-ferrous stock.

Key Features

• 25/64-inch (0.3906 inches decimal) cutting diameter for precise hole sizing
• No. 1 Morse taper (1MT) shank for secure seating in MT1 spindles and sleeves
• 118-degree standard point angle with web thinning reduces entry thrust
• High-speed steel construction with oxide finish for durability and basic lubricity
• Regular right-hand spiral flute, 3.625 inches flute length, promotes consistent chip evacuation
• 7-inch overall length provides reach for standard drill press and lathe setups

Compatibility

Designed as a standard replacement or stock taper shank drill bit for drill presses, lathes, and milling machines fitted with a No. 1 Morse taper (1MT) spindle, sleeve, or adapter.

Installation Notes

Installation is performed by machining or maintenance professionals. Power down and lock out the machine spindle before seating or removing the taper shank. Clean the MT1 taper socket and the shank taper thoroughly before insertion to ensure full seating and prevent slippage under load. Use a drift key and drift slot to remove the bit safely — never strike the spindle housing directly.
