Value Collection 01408350 Taper Length Drill Bit Hss

Product Description

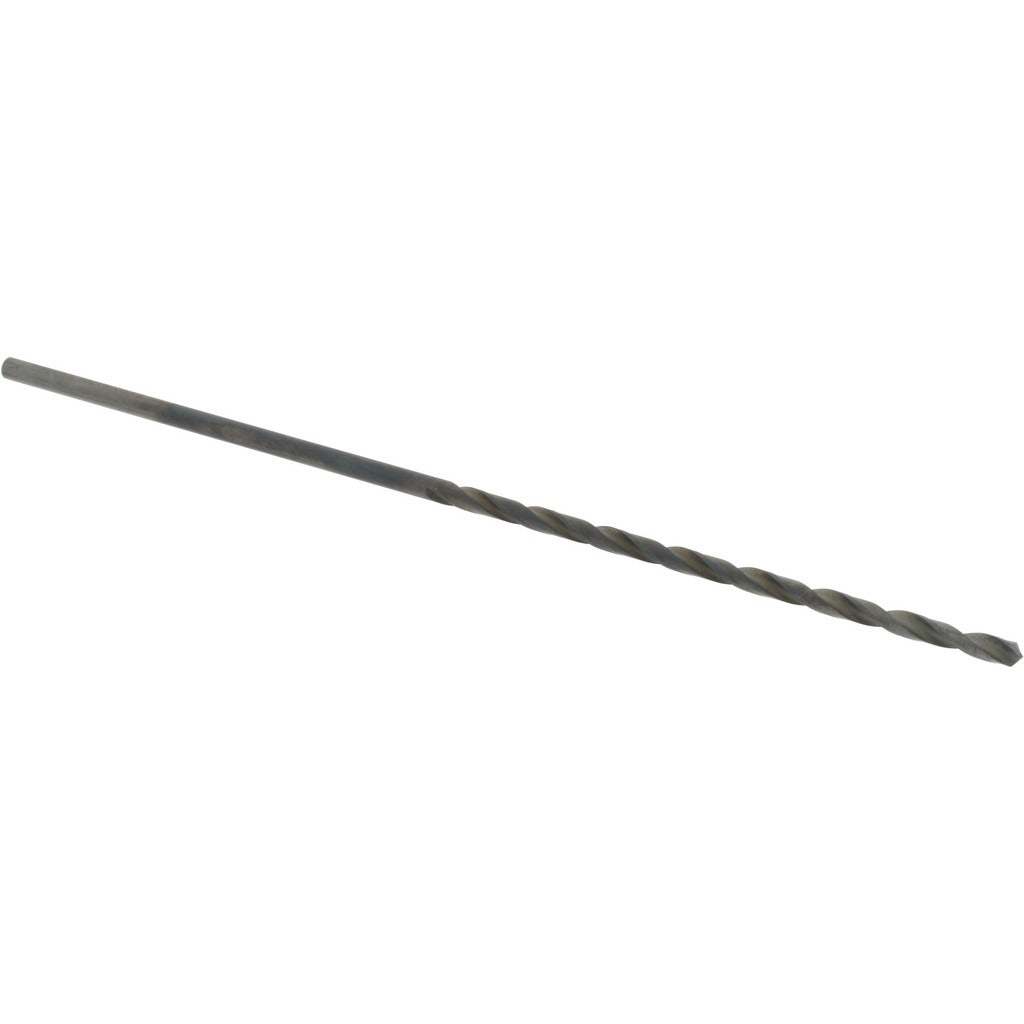

The VALUE COLLECTION 01408350 is a taper length twist drill bit designed for general-purpose drilling in metal, wood, and plastic. Built from high-speed steel (HSS) with a black oxide finish, it resists heat buildup and light corrosion during extended use. The bit measures 0.1100 inches in diameter, equivalent to a 7/64 inch or wire size 35, making it a standard small-diameter option for precision hole-making. The 118-degree standard point angle is optimized for use on a wide range of common materials. Machinists, maintenance technicians, and trade professionals reach for this bit when a longer flute length is needed to reach deeper into a workpiece than a jobber-length drill allows.

This drill bit is suited for shop and field applications where a straight-cylindrical shank is required for use in standard three-jaw chucks or collet holders. The taper length body provides extra reach compared to jobber-length bits while maintaining rigidity. The right-hand spiral flute design efficiently evacuates chips from the hole. Web-thinned construction at the point reduces cutting resistance and improves penetration on entry, which is especially useful when drilling smaller-diameter holes where thrust force needs to be minimized.

Key Features

• 0.1100 inch diameter — equivalent to 7/64 inch and wire size 35
• HSS construction handles elevated cutting temperatures in metal drilling applications
• Black oxide finish reduces friction and provides light corrosion resistance
• 118-degree standard point angle for general-purpose material compatibility
• 2.5-inch flute length delivers extended reach versus standard jobber-length bits
• Web-thinned, tapered web design lowers entry thrust and improves point engagement
• Right-hand cut, regular spiral flute for efficient chip evacuation

Compatibility

Designed for use in standard drill presses, CNC machines, and hand drills equipped with a three-jaw chuck or collet system that accepts a straight-cylindrical shank at 0.1100 inch diameter.

Installation Notes

Secure the shank fully in the chuck or collet before operation and verify concentricity to minimize runout. Use appropriate cutting fluid or coolant when drilling ferrous metals to extend tool life, even though this bit does not support through-coolant delivery. Inspect the point for wear or chipping before each use — a dull or damaged tip increases the risk of bit walking and workpiece damage. Clamp the workpiece securely and ensure the drill press table or fixture is locked before beginning the cut.
