Value Collection 01408301 Taper Length Drill Bit Hss

Product Description

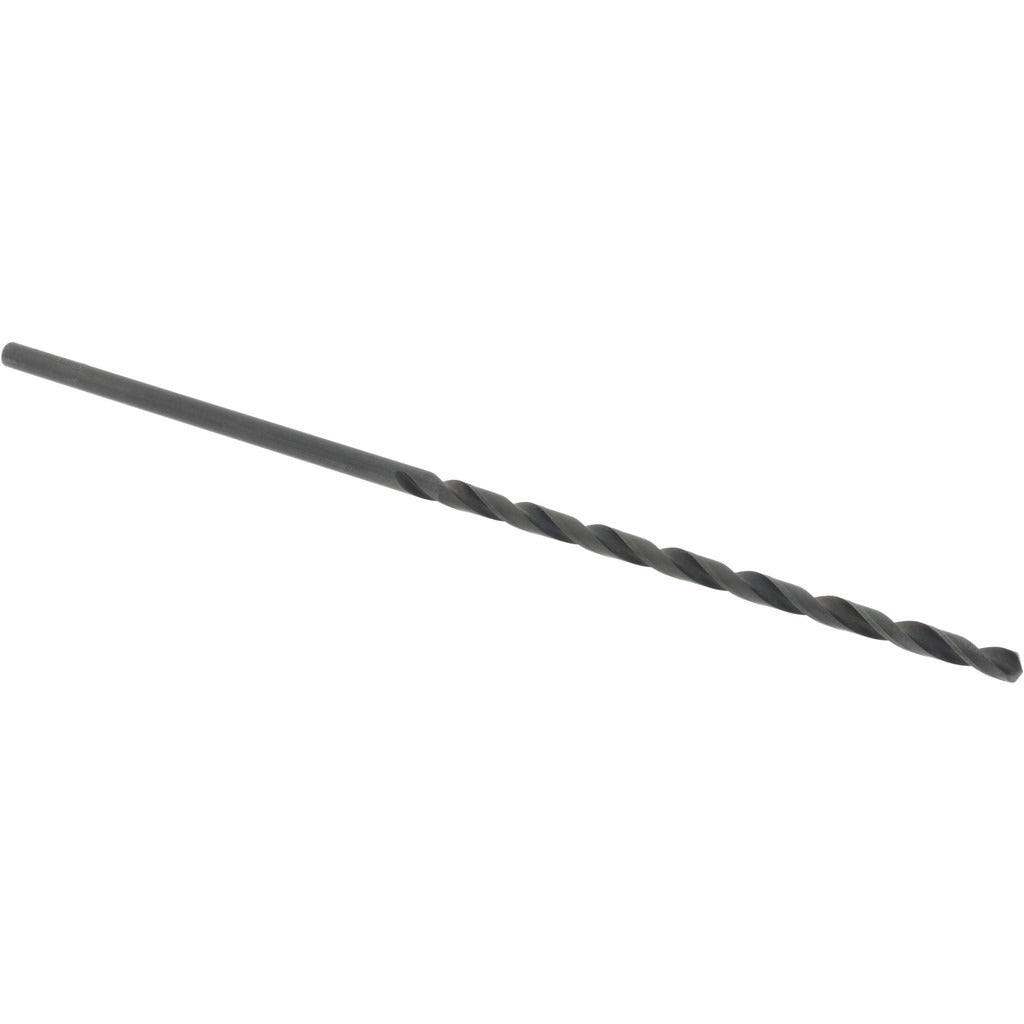

The VALUE COLLECTION 01408301 is a taper length drill bit designed for general-purpose drilling in metal, wood, and composite materials. Built from high-speed steel (HSS) with a black oxide finish, this bit offers improved lubricity and basic corrosion resistance compared to uncoated HSS tooling. It features a 0.1285 inch diameter corresponding to wire gauge size 30, a 118-degree standard point angle, and a 3.0 inch spiral flute length. The straight-cylindrical shank seats securely in standard drill chucks. Machinists, tool and die workers, and maintenance technicians are the primary installers and users of this bit.

This drill bit is suited for use in drill presses, CNC machines, and hand-held power drills where a taper length geometry is preferred for deeper reach and improved rigidity over jobber-length bits. The right-hand spiral flute and web-thinned, tapered web configuration promote efficient chip evacuation and reduced thrust during drilling. It is appropriate for general-purpose production and maintenance drilling in shop and field environments where a wire-gauge-sized hole is required.

Key Features

• HSS construction provides durability across a wide range of common workpiece materials
• Black oxide finish reduces friction and provides basic corrosion resistance
• 118-degree standard point angle for general-purpose drilling applications
• Right-hand spiral flute with web-thinned, tapered web for efficient chip removal and reduced entry thrust
• Taper length geometry offers greater reach and rigidity compared to standard jobber-length drill bits
• Straight-cylindrical shank compatible with standard drill chucks and collet holders

Compatibility

Designed as a general-purpose taper length drill bit suitable for use in standard drill presses, benchtop and floor-standing CNC drilling machines, and hand-held power drills accepting straight-cylindrical shanks.

Installation Notes

Installation and use should be performed by qualified machinists or maintenance technicians familiar with rotating cutting tools. Ensure the drill chuck or collet is fully tightened and the workpiece is securely clamped before operation. Always wear appropriate eye protection and follow shop safety procedures when operating drilling equipment. Inspect the cutting edges for wear or damage before each use and replace the bit if chipping or dulling is observed.
