Value Collection 01408210 Taper Length Drill Bit Hss

Product Description

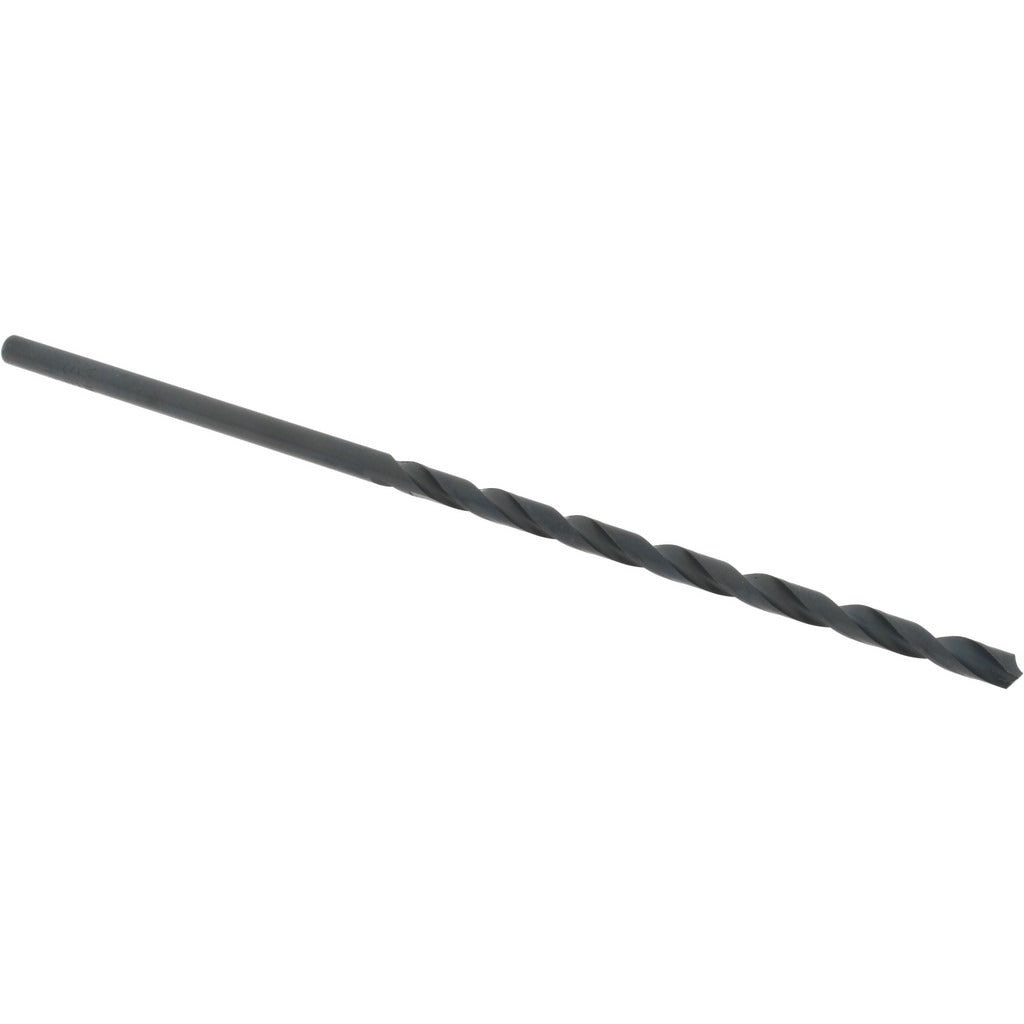

The VALUE COLLECTION 01408210 is a taper length twist drill bit designed for general-purpose drilling in metal, wood, and similar materials. Built from high-speed steel (HSS) with a black oxide finish, it offers improved lubricity and basic corrosion resistance during cutting operations. The bit measures 0.1590 inches in diameter with a 118-degree standard point angle and an overall length of 5.75 inches. The spiral flute runs 3.375 inches and features a right-hand cut with a regular spiral type. Web thinning reduces thrust force at the tip, making starts more controlled and reducing drill press load. Machinists, maintenance technicians, and fabricators are the primary users of this bit.

This drill bit suits production and maintenance drilling applications where a longer reach than a jobber-length bit is needed without stepping up to a full extra-length tool. The taper length body provides added rigidity compared to extra-long bits while still reaching deeper into workpieces or fixtures. The straight-cylindrical shank seats directly into standard three-jaw chucks on drill presses, lathes, and handheld drills. It is rated for general-purpose use and fits common shop, field service, and light fabrication workflows.

Key Features

• HSS construction handles a wide range of base metals and general shop materials
• Black oxide finish reduces friction and provides basic surface protection
• 118-degree standard point angle suits flat-bottom and general entry drilling
• Web-thinned tip reduces cutting thrust and improves hole starts
• Right-hand spiral flute evacuates chips efficiently during through-hole drilling
• Straight-cylindrical shank fits standard three-jaw chucks without adapters

Compatibility

Designed as a general-purpose taper length drill bit compatible with any drill press, lathe tailstock, or handheld drill equipped with a standard three-jaw chuck sized to accept a straight-cylindrical shank at 0.1590 inches diameter.

Installation Notes

Secure the shank fully in the chuck and verify concentricity before starting the cut. Power down and de-energize the machine before changing or inspecting bits. Use cutting fluid appropriate for the workpiece material to extend bit life and improve finish. Follow applicable shop safety standards and machine-specific operating procedures when setting spindle speed for the material and diameter being drilled.
