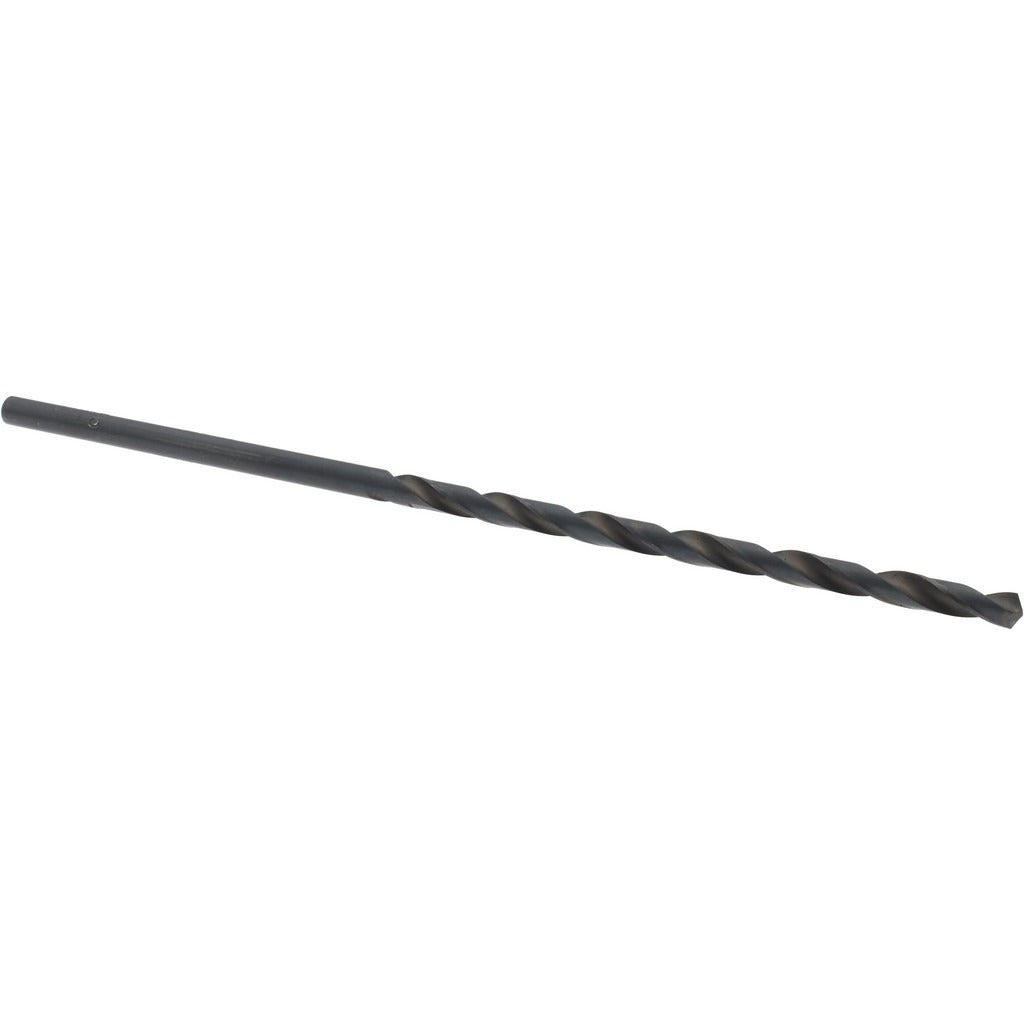

Value Collection 01408202 Taper Length Drill 0.1610in Hss

Product Description

The VALUE COLLECTION 01408202 is a taper length drill bit designed for general-purpose drilling in metal, wood, and composite materials. Built from high-speed steel (HSS) with a black oxide finish, this bit offers improved lubricity and moderate corrosion resistance compared to uncoated HSS tooling. The 118-degree standard point angle suits a wide range of common drilling applications. At 5.75 inches overall length with a 3.375-inch spiral flute, this taper length format provides greater reach than a jobber-length bit while maintaining rigidity. The straight-cylindrical shank seats securely in standard drill chucks. Machinists, tool-and-die workers, and maintenance technicians are the typical end users.

This drill bit is suited for use in drill presses, lathes, and hand-held power drills in both shop and field environments. The 0.1610-inch diameter corresponds to a No. 20 wire gauge size, a common specification in metalworking for clearance holes, tapping prep, and precision hole sizing. The right-hand spiral flute with web-thinned, tapered web geometry helps reduce thrust force and improve chip evacuation when drilling through ferrous and non-ferrous metals.

Key Features

• HSS construction provides heat resistance and durability for general-purpose metal drilling
• Black oxide finish reduces friction and provides light corrosion resistance
• 118-degree standard point angle suitable for a wide range of materials
• Web-thinned tapered web reduces drilling thrust and improves chip flow
• Taper length body offers extended reach beyond standard jobber-length bits
• Straight-cylindrical shank compatible with standard three-jaw drill chucks

Compatibility

Designed as a general-purpose taper length drill bit compatible with standard drill chucks accepting straight-cylindrical shanks in drill presses, CNC equipment, and portable power drills.

Installation Notes

Secure the shank fully in the chuck and verify concentricity before drilling. Use appropriate cutting fluid or coolant when drilling hardened or stainless steels to extend tool life. Always wear eye protection and ensure the workpiece is clamped or fixtured before operation. Inspect the cutting edges for wear or chipping before each use and replace the bit if the point is damaged.
