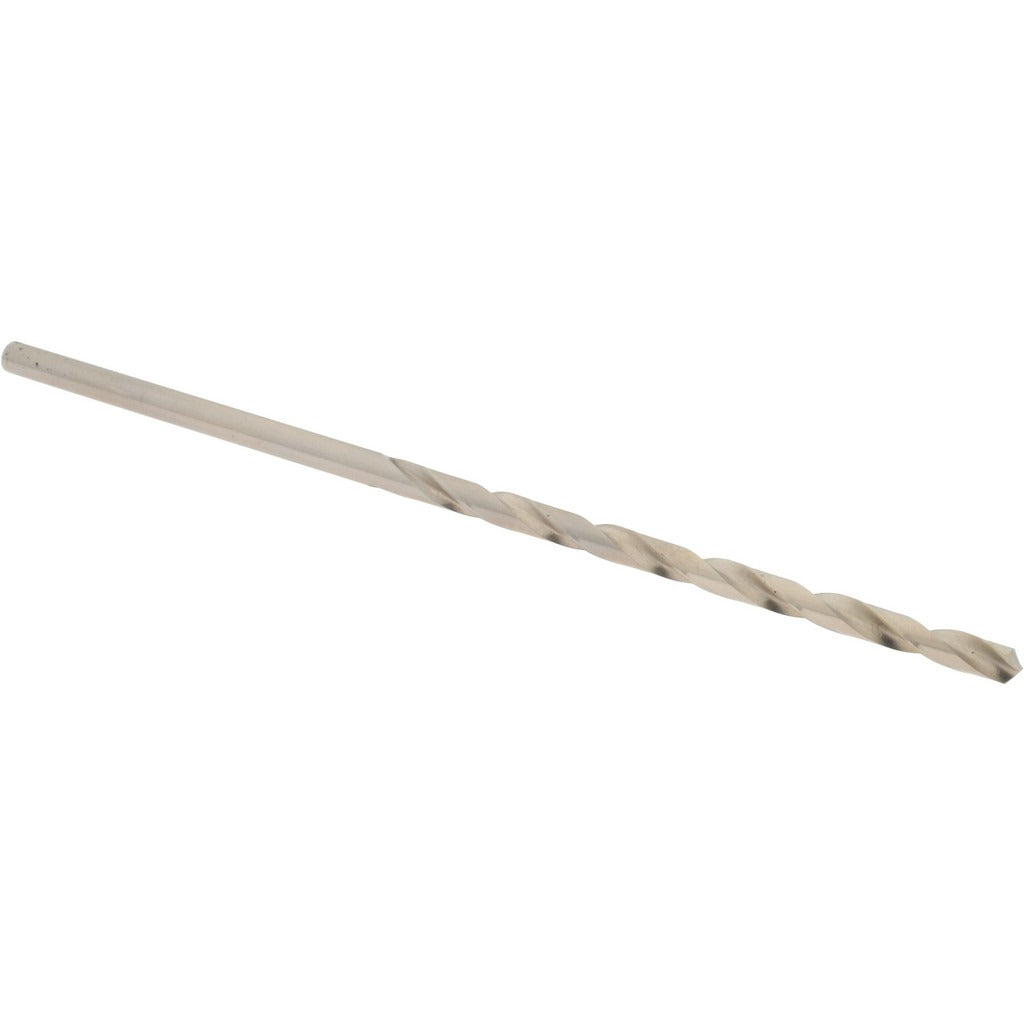

Value Collection 01408152 Taper Length Drill 0.1800 in Hss

Product Description

The VALUE COLLECTION 01408152 is a taper length drill bit designed for general-purpose drilling in metal, wood, and plastic. Manufactured from high-speed steel (HSS) with a black oxide finish, it resists heat buildup and light corrosion during extended use. The bit features a 118-degree standard point angle, a right-hand spiral flute, and a web-thinned, tapered web configuration that reduces thrust and improves chip evacuation. The straight-cylindrical shank fits standard drill chucks. With an overall length of 5.75 inches and a flute length of 3.375 inches, this bit suits applications requiring deeper reach than a jobber-length drill. Machinists, tool-and-die workers, and maintenance technicians are the primary users.

This drill bit is suited for production and maintenance drilling in ferrous and non-ferrous materials where taper length geometry is specified. The extended flute length allows drilling through thicker stock or at greater depths without retraction for chip clearing as frequently as with shorter bits. It is a general-purpose grade tool appropriate for manual drill presses, CNC drilling centers, and hand-held power drills with a compatible chuck.

Key Features

• HSS construction withstands high cutting temperatures in metal drilling applications
• Black oxide finish provides light corrosion resistance and reduces friction at the cutting edge
• 118-degree standard point angle suits general-purpose drilling across a broad range of materials
• Web-thinned, tapered web reduces axial thrust and improves chip flow
• Taper length body at 5.75 inches overall allows deeper reach compared to jobber-length bits of the same diameter
• Right-hand spiral flute for use with standard drill equipment

Compatibility

Designed as a general-purpose taper length drill bit fitting any standard drill chuck that accepts a straight-cylindrical shank at 0.1800 inch diameter, equivalent to a No. 15 wire gauge drill size.

Installation Notes

This bit is installed and removed by a licensed machinist or qualified maintenance technician using a standard keyed or keyless drill chuck. Secure the shank fully in the chuck before operation and verify runout is within acceptable tolerance for the application. Always wear appropriate eye protection and follow applicable shop safety procedures when drilling. Reduce feed rate when breaking through material to prevent bit walking or workpiece damage.
