Value Collection 01408103 Taper Length Drill Bit Hss

Product Description

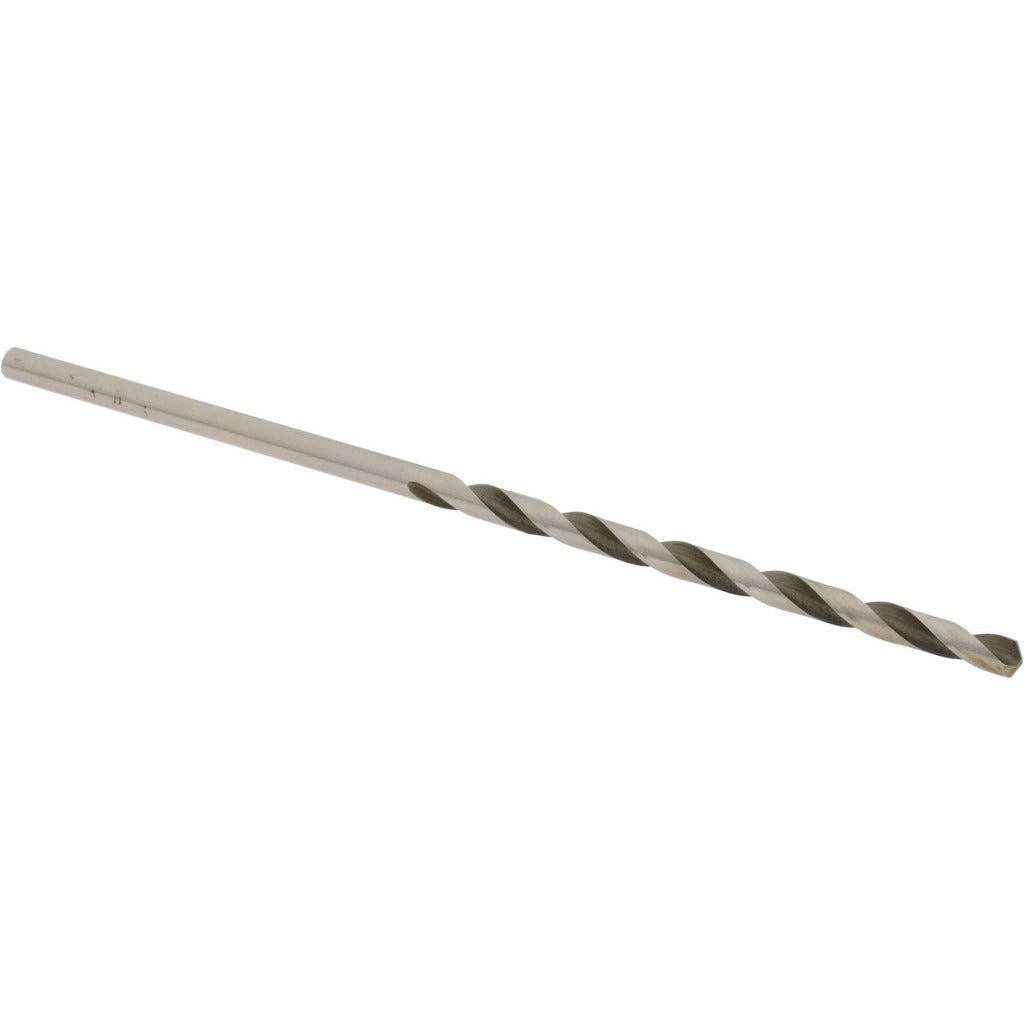

The VALUE COLLECTION 01408103 is a taper length twist drill bit designed for general-purpose metal drilling in production and maintenance environments. Built from high-speed steel (HSS) with a black oxide finish, it provides moderate heat and corrosion resistance during drilling operations. The bit features a 118-degree standard point angle, a right-hand spiral flute, and a straight-cylindrical shank for use in standard drill chucks. The web-thinned, tapered web configuration reduces thrust requirements and improves chip clearing. This drill is sized to 0.1935 inches in diameter, corresponding to wire gauge size 10, and carries a 6-inch overall length.

This taper length drill bit is suited for general-purpose drilling in ferrous and non-ferrous metals, plastics, and similar materials in both shop and field settings. The extended taper length body — compared to jobber-length bits — makes it appropriate for reaching deeper hole locations or drilling through thicker stock where a standard-length bit would fall short. It is typically used by machinists, maintenance technicians, and metalworking trades in light industrial and commercial applications.

Key Features

• HSS construction for drilling steel, cast iron, aluminum, and similar materials
• Black oxide finish reduces friction and provides mild corrosion resistance
• 118-degree standard point angle for general-purpose drilling
• Right-hand cut, regular spiral flute for efficient chip evacuation
• Web-thinned tapered web reduces cutting thrust and improves bit longevity
• Straight-cylindrical shank fits standard three-jaw drill chucks

Compatibility

Designed as a general-purpose taper length drill bit compatible with standard drill chucks and drill presses accepting a straight-cylindrical shank at the 0.1935-inch diameter wire gauge size 10 specification.

Installation Notes

Installation and use of this drill bit should be performed by qualified machinists or maintenance technicians familiar with rotating tool safety practices. Secure the workpiece firmly before drilling and ensure the shank is fully seated and tightened in the chuck before operation. Use appropriate cutting fluid when drilling ferrous metals to extend tool life and improve hole finish. Inspect the bit for wear, chipping, or cracking before each use and replace if the cutting edges show visible damage.
