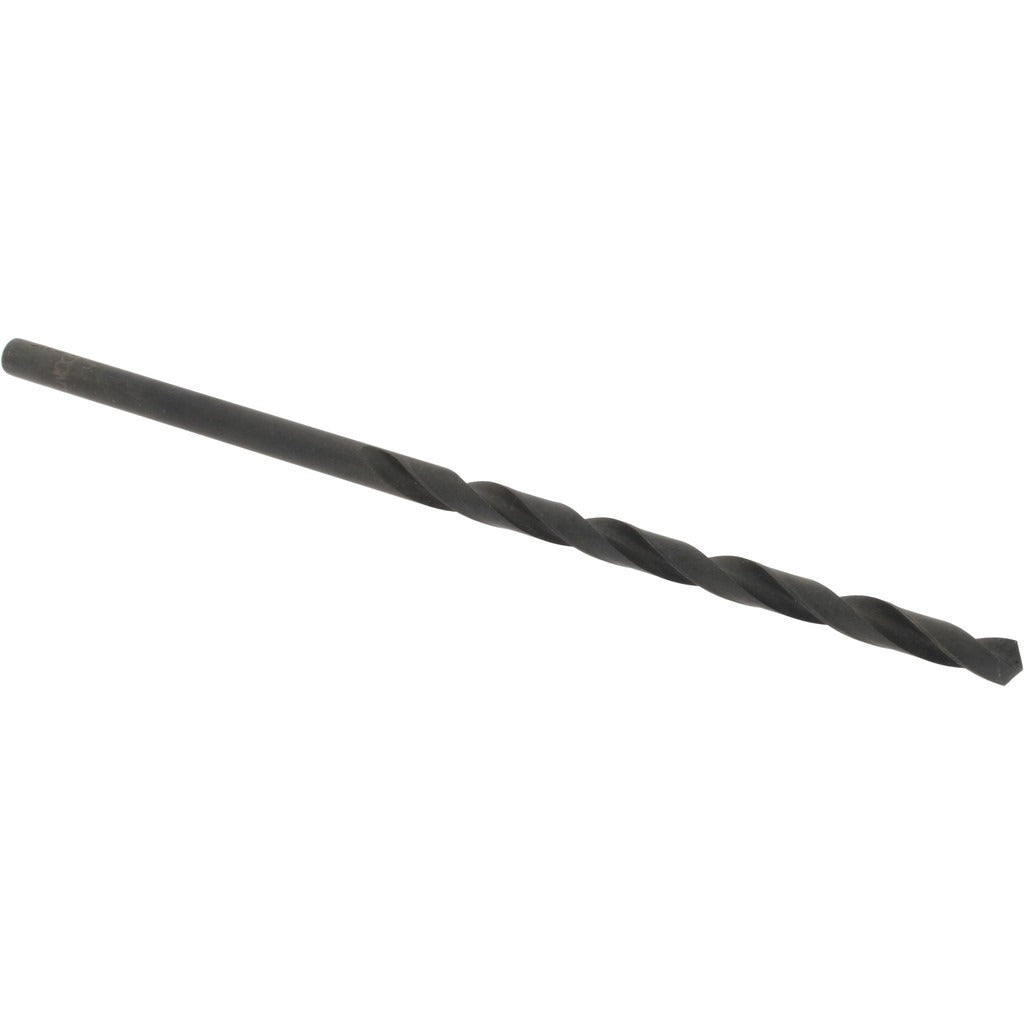

Value Collection 01408020 Taper Length Drill Bit Hss

Product Description

The VALUE COLLECTION 01408020 is a taper length twist drill bit designed for general-purpose drilling in metal, wood, and plastic. Built from high-speed steel (HSS) with a black oxide finish, this bit resists heat and minor corrosion during extended use. It measures 0.2210 inches in diameter and carries a standard 118-degree point angle, making it well suited for drilling into a wide range of common materials. The straight-cylindrical shank seats securely in standard drill chucks. The web-thinned, tapered web design reduces thrust and improves chip evacuation on deeper cuts. Machinists, maintenance technicians, and fabricators install this bit in manual drill presses, CNC machines, and hand drills.

This drill bit fits general-purpose production and maintenance applications across industrial, commercial, and light fabrication environments. The right-hand spiral flute with a 3.75-inch flute length handles moderate-depth holes typical in sheet metal, mild steel, aluminum, and structural plastic. The overall length of 6 inches provides additional reach compared to a jobber-length bit, which is useful when working in recessed or confined areas. It corresponds to wire gauge size No. 2.

Key Features

• HSS construction provides hardness and heat resistance for metal drilling applications
• Black oxide finish reduces friction and provides light corrosion resistance
• 118-degree standard point angle suits a broad range of common materials
• Web-thinned, tapered web reduces cutting resistance and improves chip clearing
• Right-hand spiral flute with 3.75-inch flute length accommodates moderate-depth holes
• Straight-cylindrical shank fits standard 3-jaw drill chucks without adapters

Compatibility

Designed as a general-purpose taper length drill bit suitable for use in standard drill presses, milling machines, and hand drills accepting straight-cylindrical shank bits in the 0.2210-inch diameter range.

Installation Notes

A licensed machinist or qualified maintenance technician should secure the shank fully into the drill chuck before operation. Always ensure the workpiece is clamped or fixtured to prevent rotation during drilling. Use appropriate cutting fluid or lubricant when drilling ferrous metals to extend bit life and reduce heat buildup. Inspect the cutting edges for wear before each use and replace the bit if the point shows chipping or excessive dulling.
