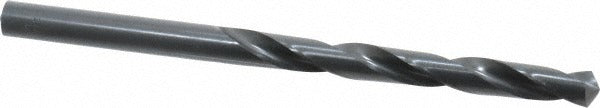

Value Collection 01400316 Taper Length Drill Bit Hss

Product Description

The VALUE COLLECTION 01400316 is a taper length twist drill bit designed for general-purpose drilling in metal, wood, and plastic. Built from high-speed steel (HSS) with a black oxide finish, it resists heat and extends tool life in demanding production environments. The bit features a 118-degree standard point angle, a right-hand spiral flute, and a straight-cylindrical shank for use in standard drill chucks. At 7.75 inches overall length with a 4.75-inch flute length, it reaches deeper into workpieces than jobber-length bits without requiring extension tooling. A tapered web configuration with web thinning reduces thrust and improves chip evacuation.

This drill bit is suited for machinists, tool-and-die tradespeople, maintenance technicians, and fabricators who require additional reach beyond a standard jobber-length drill. The taper length body is commonly used when drilling through thick stock, deep holes in structural steel, or where a jobber bit cannot reach. The straight-cylindrical shank accepts standard three-jaw drill chucks on bench drills, drill presses, and hand-held drilling equipment.

Key Features

• HSS construction handles high heat and abrasion in metal-cutting applications
• Black oxide finish reduces friction and provides mild corrosion resistance
• 118-degree standard point angle suits general-purpose drilling across multiple materials
• Web-thinned tapered web lowers drilling thrust and improves chip clearance
• Taper length body at 7.75 inches overall provides extra reach over jobber-length bits
• Right-hand spiral flute evacuates chips efficiently during through-hole drilling

Compatibility

Designed as a general-purpose taper length drill bit compatible with any standard drill chuck accepting a straight-cylindrical shank in the 31/64 inch diameter range.

Installation Notes

Installation and use of this drill bit should be performed by machinists or qualified tradespeople familiar with rotating cutting tools. Secure the straight shank fully in the drill chuck and verify runout before drilling. Always use appropriate cutting fluid or lubricant when drilling ferrous metals to extend bit life and reduce heat buildup. Wear appropriate eye protection and secure the workpiece before beginning the cut.
