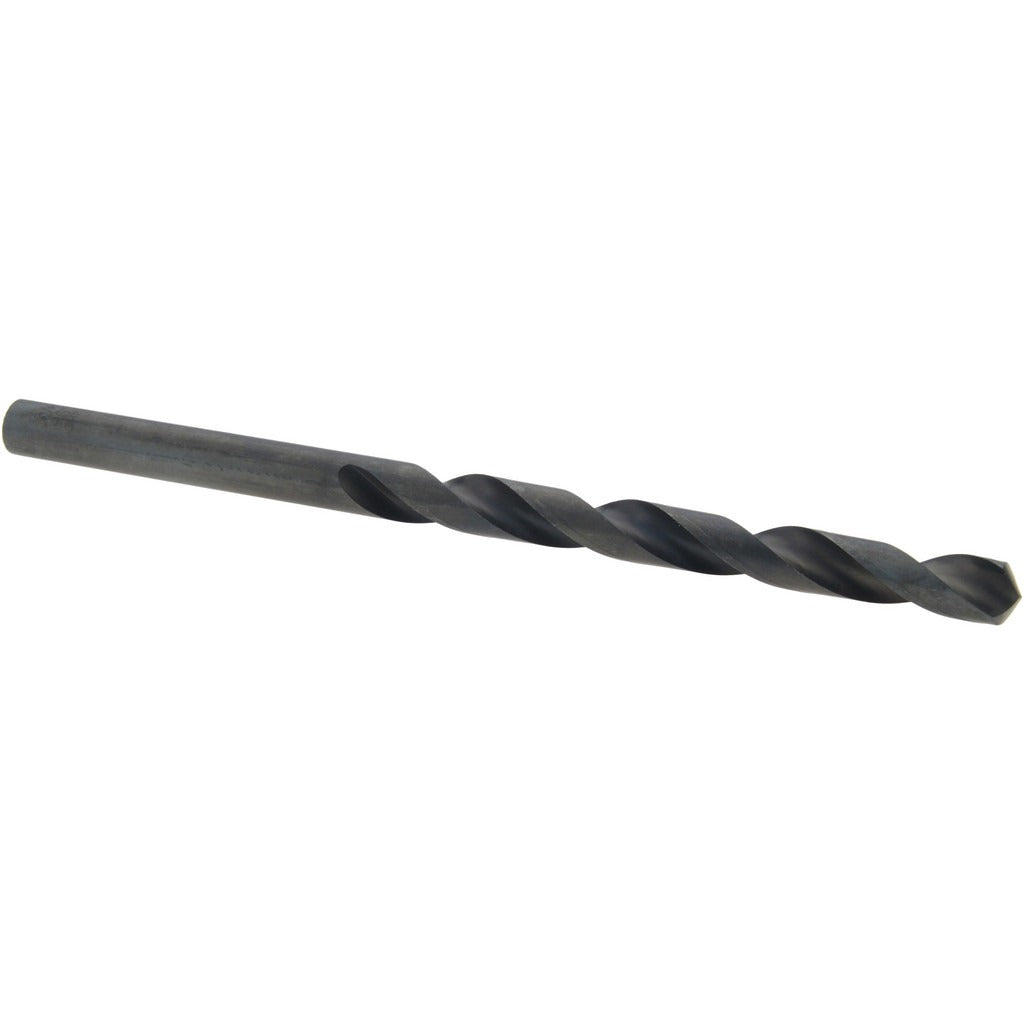

Value Collection 01400241 Taper Length Drill Bit Hss

Product Description

The VALUE COLLECTION 01400241 is a taper length twist drill bit designed for general-purpose drilling in metal, wood, and composite materials. Built from high-speed steel (HSS) with a black oxide finish, it resists heat buildup and light corrosion during extended use. The bit measures 0.3750 inches (3/8 inch) in diameter with a 118-degree standard point angle, making it well suited for a wide range of production and maintenance drilling tasks. A web-thinned, tapered web configuration reduces thrust and improves chip clearance at the cutting tip. Machinists, maintenance technicians, and pipefitters commonly use this size when drilling pilot holes, clearance holes, or bolt-pattern layouts in steel and iron.

This drill bit is appropriate for use in drill presses, milling machines, hand drills, and magnetic base drills. The straight-cylindrical shank fits standard drill chucks without adapters. The taper length body — longer than a jobber-length bit but shorter than an extra-long series — provides added reach for deeper holes while maintaining rigidity. It suits both shop and field applications where a 3/8-inch hole is required in structural steel, pipe, ductwork, panel enclosures, or similar trade materials.

Key Features

• HSS construction handles high-heat drilling in ferrous and non-ferrous metals
• Black oxide finish reduces friction and provides moderate corrosion resistance
• 118-degree standard point angle is compatible with most general-purpose drill press setups
• Web-thinned tapered web reduces cutting resistance and improves chip evacuation
• Right-hand spiral flute pulls chips up and out of the hole during drilling
• Straight-cylindrical shank fits standard three-jaw drill chucks directly

Compatibility

Designed as a general-purpose taper length drill bit compatible with any standard drill chuck accepting a straight-cylindrical shank in the 3/8-inch size range.

Installation Notes

A licensed machinist or qualified maintenance technician should select the appropriate cutting speed and feed rate for the base material being drilled. Always secure the workpiece firmly before drilling and wear appropriate eye protection. When drilling ferrous metals, apply a cutting fluid to extend bit life and reduce heat. Inspect the cutting edges before use and replace the bit if the tip shows signs of chipping or excessive wear.
