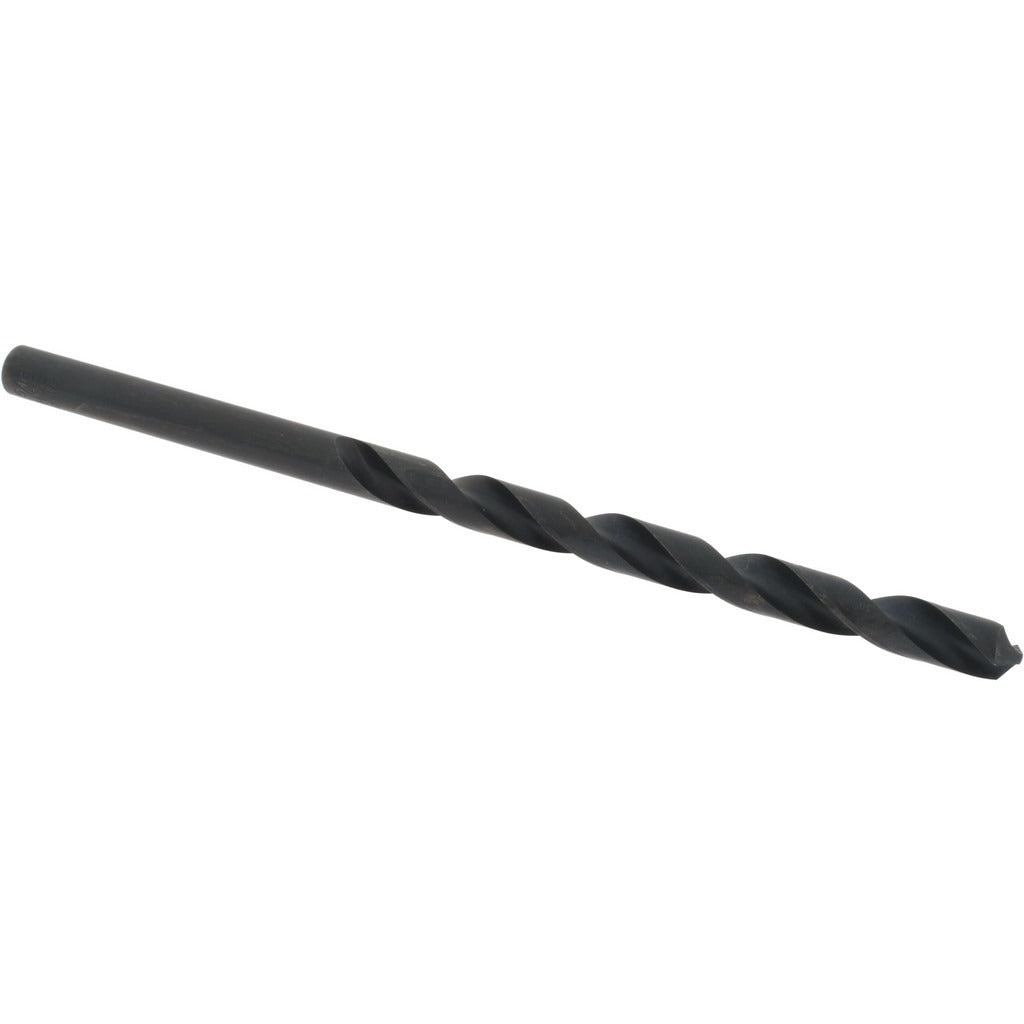

Value Collection 01400209 Taper Length Drill Bit Hss

Product Description

The VALUE COLLECTION 01400209 is a taper length drill bit designed for general-purpose drilling in metal, wood, and plastic. Built from high-speed steel (HSS) with a black oxide finish, it reduces friction and provides moderate corrosion resistance during cutting operations. The 118-degree split point is web-thinned for easier penetration and reduced walking on entry. With a 4.0 inch flute length and an overall length of 6-3/8 inches, this bit reaches deeper than a jobber-length drill while maintaining rigidity. It features a straight cylindrical shank for standard chuck compatibility. Machinists, maintenance technicians, and fabricators use this type of drill in drill presses, lathes, and hand-held power tools.

This taper length drill bit is suited for production and maintenance drilling where a longer flute reach is needed but a full-length extension drill is unnecessary. The regular spiral flute and right-hand cut make it appropriate for ferrous and non-ferrous metals, thermoplastics, and general shop materials. The black oxide finish is well-suited for dry or minimal-lubrication cutting environments common in general machine shop and maintenance applications.

Key Features

• HSS construction provides hardness and heat resistance for metal drilling applications
• Black oxide finish reduces friction and offers light corrosion resistance
• 118-degree standard point angle with web-thinned tip for reduced thrust and cleaner entry
• 4.0 inch flute length allows deeper reach compared to standard jobber-length bits
• Straight cylindrical shank fits standard 3-jaw drill chucks without adapters
• Right-hand spiral flute with tapered web configuration for consistent chip evacuation

Compatibility

Designed as a general-purpose taper length drill bit compatible with any standard drill press, lathe, or power drill equipped with a chuck that accepts a straight cylindrical shank.

Installation Notes

Always secure the workpiece and ensure the chuck is fully tightened before beginning drilling operations. Power down and disconnect the machine before changing bits. Use appropriate cutting fluid or lubricant when drilling ferrous metals to extend bit life and improve hole quality. Operators should follow applicable shop safety standards and wear appropriate PPE including eye protection.
