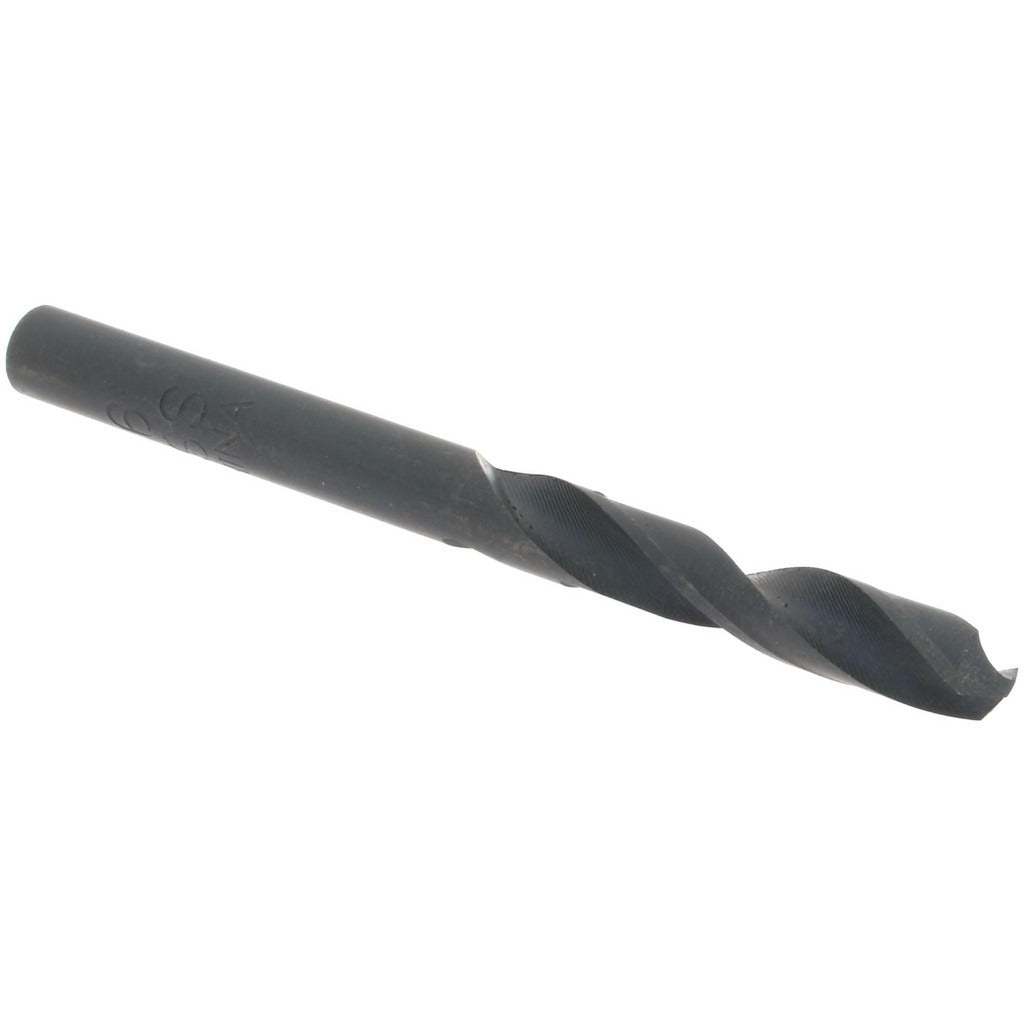

Value Collection 01358167 Size 16 Screw Machine Drill Bit

Product Description

The VALUE COLLECTION 01358167 is a screw machine length drill bit designed for high-speed, close-tolerance drilling in metal fabrication, machining, and maintenance applications. Built from high-speed steel (HSS) with an oxide finish, it cuts a 0.1770-inch diameter hole and carries a 118-degree standard point angle for reliable center-starting on flat and curved stock. At 2.1875 inches overall length, this stub-style bit fits tight spaces where jobber-length bits cannot. The straight cylindrical shank seats securely in standard drill chucks and machine spindles. A two-flute regular spiral design provides efficient chip evacuation. Web thinning reduces thrust and improves penetration on harder materials.

This bit is suited for light-duty production drilling in manual drill presses, CNC turret machines, and handheld power drills where a compact cutting length is required. The size 16 wire gauge designation and 0.1770-inch decimal diameter make it a standard selection for undersized clearance holes, tap-drill operations, and pilot holes in steel, aluminum, and similar metals. It is commonly used by machinists, millwrights, and maintenance technicians in shop and field environments.

Key Features

• HSS construction handles the heat and stress of continuous metal drilling
• Oxide coating provides mild lubricity and corrosion resistance during storage and use
• 118-degree standard point angle centers quickly on most metallic workpieces
• Screw machine (stub) length at 2.1875 inches overall fits restricted-clearance setups
• Web-thinned parallel web reduces cutting resistance and feed force
• Straight cylindrical shank compatible with standard drill chucks and collets

Compatibility

Designed as a general-purpose screw machine length drill bit compatible with standard three-jaw drill chucks and collets accepting a straight cylindrical shank in the 0.1500 to 0.2000-inch drill size range.

Installation Notes

Install in a properly rated drill press, lathe tailstock, or power drill with the shank fully seated in the chuck before tightening. Ensure the workpiece is securely clamped before beginning the cut. Use appropriate cutting fluid for ferrous materials to extend tool life. Inspect the cutting edges for wear or chipping before each use and replace the bit if the point is compromised.
