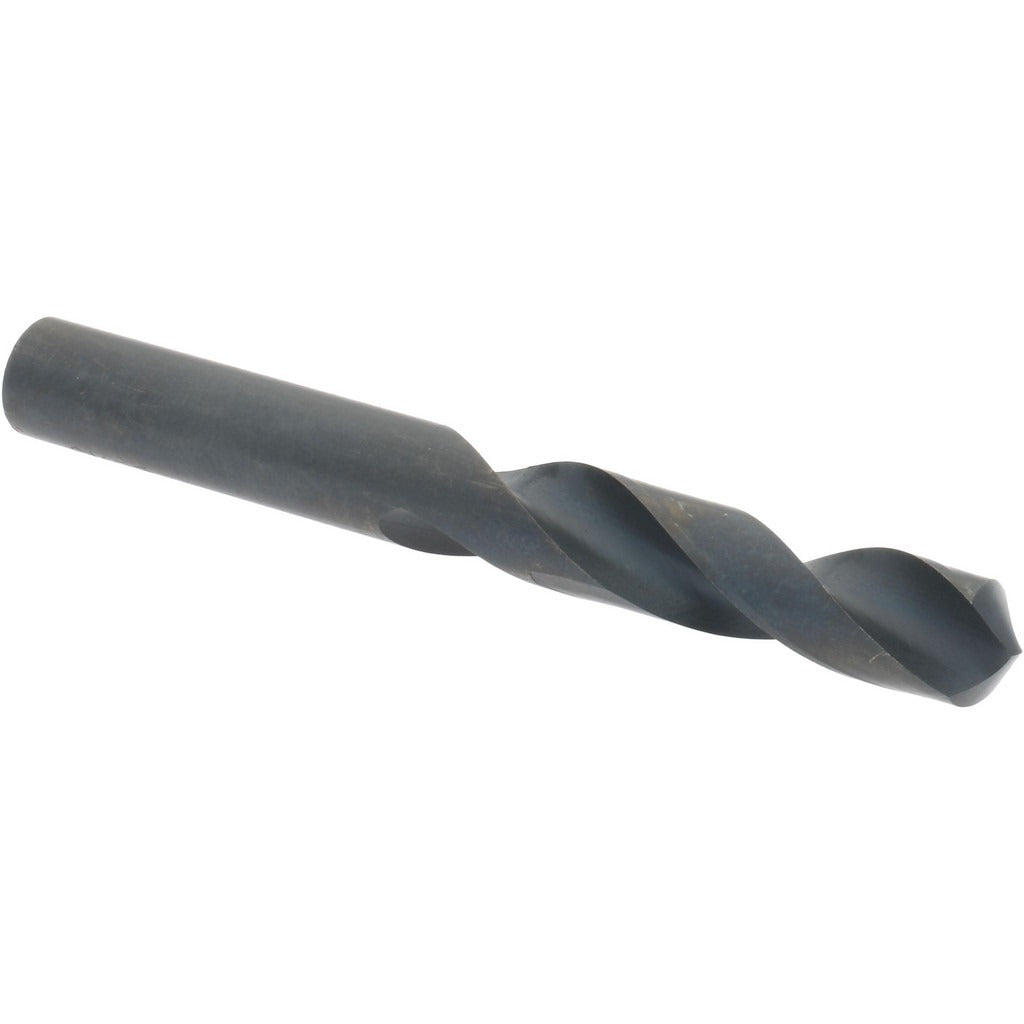

Value Collection 01350222 Screw Machine Drill Bit 11/32in

Product Description

The VALUE COLLECTION 01350222 is a screw machine length drill bit designed for high-frequency, close-tolerance drilling in metal fabrication, mechanical assembly, and general-purpose trade work. Built from high-speed steel (HSS) with an oxide coating for surface hardness and basic corrosion resistance, this bit features a standard 118-degree split point and a right-hand spiral flute configuration. At 11/32 inches (0.3438 inches decimal) in diameter and 3 inches overall length, it fits into tight-clearance setups where a jobber-length bit would interfere. The shorter body provides increased rigidity and reduced deflection on entry, making it well-suited for drill press and hand-drill applications in metal and hard plastic substrates.

This screw machine drill bit is appropriate for use in general-purpose production drilling, maintenance and repair operations, and shop-floor fabrication tasks. Its straight cylindrical shank accepts standard three-jaw drill chucks without adapters. The 1-11/16 inch flute length handles moderate chip evacuation needs for the materials and depths typical of screw machine work. No coolant-through capability is present, so external flood or mist cooling should be used when drilling ferrous metals at sustained speeds.

Key Features

• High-speed steel construction for hardness and heat resistance in metal drilling
• Oxide coating provides basic surface protection and reduces galling during cutting
• 118-degree standard point angle suits general-purpose drilling in steel, aluminum, and hard plastics
• Screw machine length body increases rigidity and reduces deflection compared to jobber-length bits
• Web-thinned geometry reduces thrust force at entry for cleaner hole starts
• Right-hand, regular spiral flute promotes efficient chip removal in through-hole applications

Compatibility

Designed as a general-purpose screw machine length drill bit compatible with any standard three-jaw drill chuck accepting a straight cylindrical shank in the 11/32 inch diameter range.

Installation Notes

This bit is installed and serviced by machinists, maintenance technicians, and trade professionals operating drill presses, lathes, or hand drills. Secure the straight shank fully in the chuck before operation and verify chuck key removal prior to powering the tool. Use appropriate cutting fluid or external mist cooling when drilling ferrous metals to extend bit life and maintain dimensional accuracy. Inspect the cutting edges for wear or chipping before each use and replace bits that show deformation at the tip or along the flute lands.
